Installing the rear bumper trim
NOTE:
Perform the steps on the right and left side.

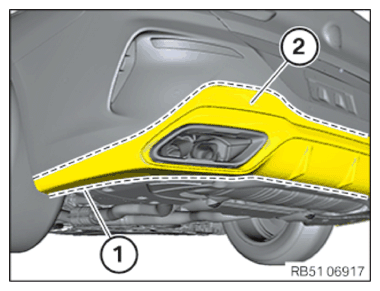

- Check all the detents of the rear bumper trim (2) for damage.
If the detents are faulty or missing, then the rear bumper trim (2) must be replaced.
- Clip in the rear bumper trim (2) along the dashed line on the detents.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Rear bumper trim to undershield | ||
|---|---|---|
| Screw | tightening torque | 3 Nm |
