Installing both side rear trim strips
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the side rear trim strip
Check

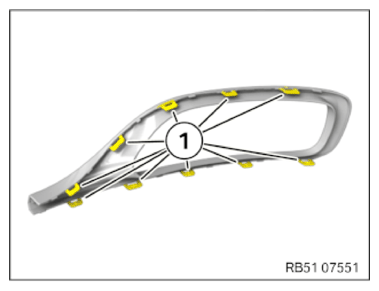

- Check the detents (1) at the trim strip on the rear side for damage.
Result
» Detents (1) are damaged.
Measure
- Installing the side rear trim strip
Parts: Trim strip at the rear on the side
- Install the side rear trim strip.

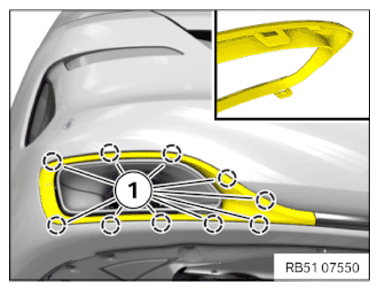

- Fit the rear side trim strip and clip in with the detents (1).
