Securing the propeller shaft on the rear axle differential

NOTE: RISK OF DAMAGE
Damage to the prop shaft during installation.
Non-observance of the installation guidelines for the prop shaft on the rear axle differential may cause severe damage.

Always replace the recessed nut on the rear axle differential. Screw lock must be available.
Strictly observe a minimum hardening time of three hours after having screwed in the recessed nut. The hardening time may be longer at lower temperatures.

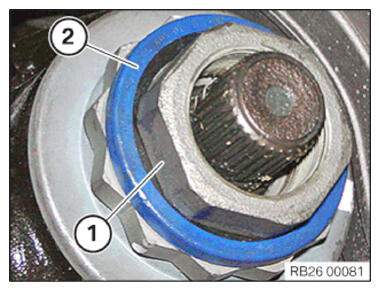

Remove retaining ring (1) and seal (2).

Courtesy of BMW OF NORTH AMERICA, INC.

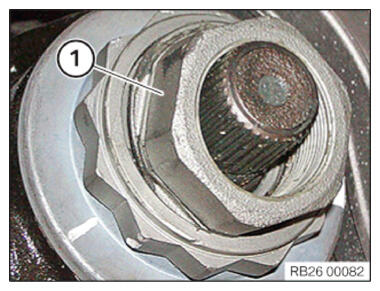

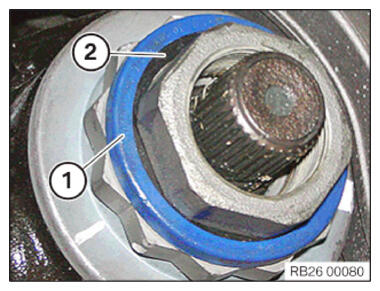

Remove recessed nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

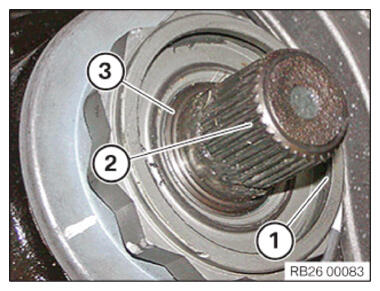

Clean all residue from the recessed collar (1) of the twelve-edge flange nut, the gearing on the bevel drive pinion (2) and the taper (3) and degrease them.
Top up the collar insert (1) with grease.
CONSUMABLE SPECIFICATIONS

Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754

Courtesy of BMW OF NORTH AMERICA, INC.
Replace recessed nut (1), seal and retaining ring (2).
Parts: Recessed nut, seal, retaining ring
Insert the recessed nut (1) with the seal into the recessed collar of the twelve-edge flange nut.
Mount retaining ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.

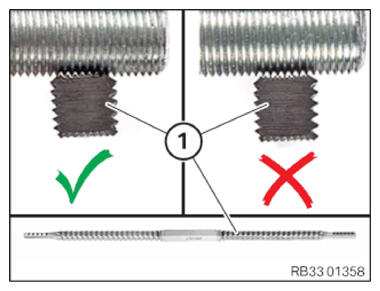

Use thread file (1) to remove any adhesive residue on the thread.
The thread pitch must be correct!

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the output flange.
Failure to observe the greasing specifications may lead to damage on the output flange.
- Do not contaminate the thread of the output flange with grease.
Clear away adhesive residue from the thread (1) of the flange and clean.
Clean gearing (2).
Grease gearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754

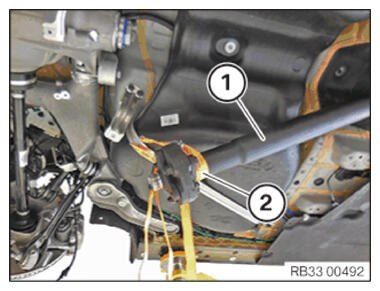

Loosen the luggage strap (2) from the prop shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.

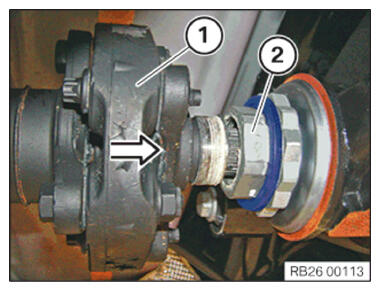

Push the prop shaft (1) in arrow direction against the recessed nut (2) up to the stop.
Manually screw the recessed nut (2) at least two threads onto the prop shaft (1) and tighten it.

Courtesy of BMW OF NORTH AMERICA, INC.
Position central mount (1).

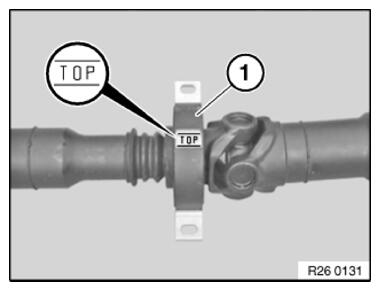

Position the center mount (1) with the designation TOP at the top in the transmission tunnel.

Courtesy of BMW OF NORTH AMERICA, INC.

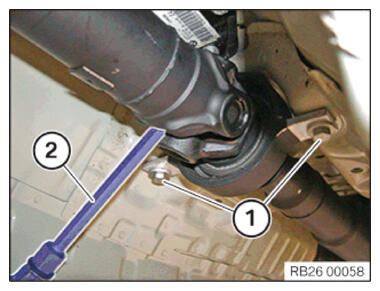

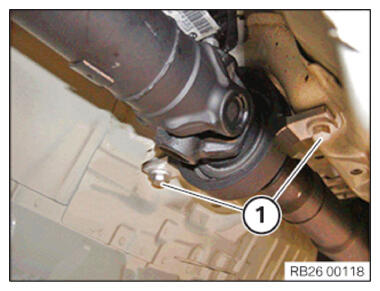

Screw in the screws (1) by a few turns.
Variant with a wide universal joint:
Secure the propeller shaft from twisting with a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
Variant with a narrow universal joint:

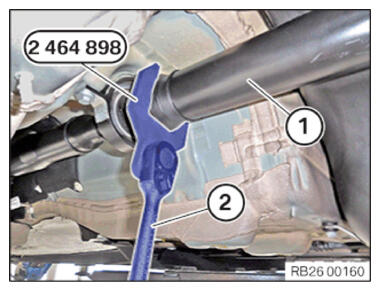

Secure the propeller shaft (1) from twisting with the special tool 2 464 898 and a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the flange nut.
Failure to observe the installation specifications may lead to serious damage to the flange nut and the rear axle differential.

Do not use the twelve-edge flange nut as counter support.
Screw in the recessed nut within 5 minutes.

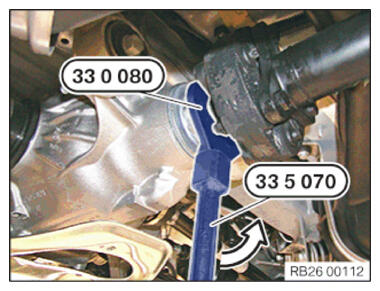

Tighten the recessed nut counterclockwise in the arrow direction with special tools 0 495 554 (33 5 070) and 0 496 959 (33 0 080) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Propeller shaft to rear axle differential
recessed nut Replace recessed nut.	Tightening torque	100 Nm

After the propeller shaft is installed and the recessed nut is screwed in, strictly observe a hardening time of minimum 3 hours.
During this time the vehicle must not be moved or pushed!

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Drive shaft center bearing on body
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the prop shaft during installation.
Non-observance of the installation guidelines for the prop shaft on the rear axle differential may cause severe damage.

Always replace the recessed nut on the rear axle differential. Screw lock must be available.
Strictly observe a minimum hardening time of three hours after having screwed in the recessed nut. The hardening time may be longer at lower temperatures.

To remove the adhesive residue on the thread, use thread file (1).
The right thread pitch must be ensured!

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the output flange.
Failure to observe the greasing specifications may lead to damage on the output flange.

Do not contaminate the thread of the output flange with grease.

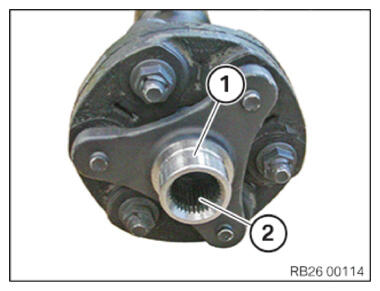

Clean thread (1) of the propeller shaft hub with the thread file to remove any adhesive residue.
Clean the hub gearing (2).

Grease hub gearing (2).

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Lubricating grease Olistamoly 2 LN 584 LO

100 g, Tube

83 19 0 447 919

Loosen the luggage strap (2) from the prop shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Push the prop shaft (1) in the arrow direction against the recessed nut (2) up to the stop.
Manually screw the recessed nut (2) at least 2 threads onto the prop shaft (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the center mount (1) with the designation TOP at the top in the transmission tunnel.

Courtesy of BMW OF NORTH AMERICA, INC.
Screw in the screws (1) by a few turns.
Variant with a wide universal joint:
Secure the propeller shaft from twisting with a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
Variant with a narrow universal joint:
Secure the propeller shaft (1) from twisting with the special tool 2 464 898 and a suitable tool (2) on the center universal joint.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the flange nut.
Failure to observe the installation specifications may lead to serious damage to the flange nut and the rear axle differential.
- Do not use the twelve-edge flange nut as counter support.
- Screw in the recessed nut within 5 minutes.
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten recessed nut in the arrow direction using special tools 0 495 554 (33 5 070) and 0 496 959 (33 0 080) .

TIGHTENING TORQUE SPECIFICATIONS

Propeller shaft to rear axle differential
recessed nut Replace recessed nut.	Tightening torque	100 Nm

After the prop shaft is installed and the recessed nut is screwed in, a hardening time of minimum 3 hours must be maintained .
During this time the vehicle must not be moved or pushed!
Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Drive shaft center bearing on body
M8	Tightening torque	19 Nm
