Tightening the threaded connection to the control arm in the normal position

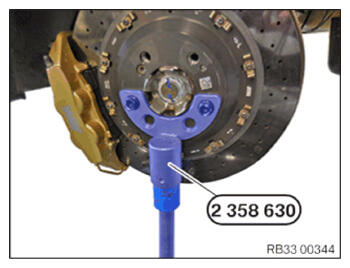

- Secure special tool 2 358 630 to drive flange with lug bolts.
- Insert the universal jack into the special tool 2 358 630
- Loosen screw (1) .
- Detach the spring strut from the wheel carrier.
- Adjust NORMAL POSITION .
- Make sure that the spring strut shock absorber is not screwed to the wheel carrier.
- Use the workshop jack and the special tool 2 358 630
to push the wheel carrier up until it reaches
dimension (A)
.

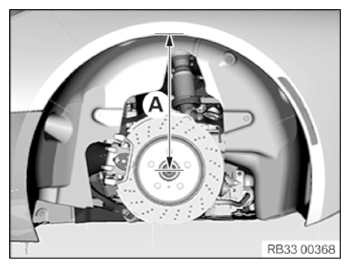

Dimension (A) = Center of the wheel hub to the upper edge of the wheel arch
Dimension (A) = 380 mm
NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION . - Replace the screw (1)
.
Parts: Screw

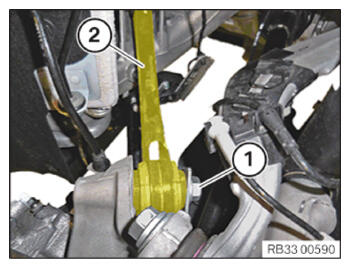

- Tighten the bolt (1)
on the control arm (2)
.TIGHTENING TORQUES SPECIFICATION
Control arm to wheel carrier M16
Replace screw.
Tighten in normal position.Joining torque 165 Nm Angle of rotation 90° NOTE: TECHNICAL INFORMATION

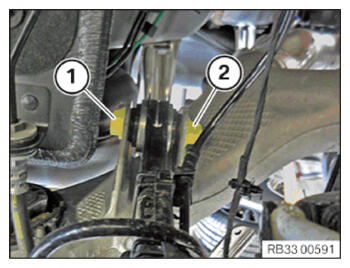

Tighten the screw connection in the NORMAL POSITION . - Replace the nut (2)
and screw (1)
.
Parts: Nut, bolt
- Tighten the nut (2)
and screw (1)
.TIGHTENING TORQUES SPECIFICATION
Control arm to rear axle support M14
Replace screw and nut.
Tighten in normal position.Joining torque 165 Nm Angle of rotation 90° - Lower the universal jack and set it aside.
- Remove special tool 2 358 630
.NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
For additional information see: technical data for REAR AXLE . - Position the spring strut on the wheel carrier.

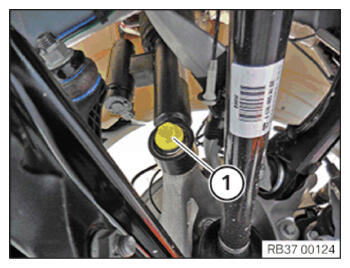

- Replace the screw (1)
.
Parts: Screw
- Tighten the screw (1)
in NORMAL POSITION
.TIGHTENING TORQUES SPECIFICATION
Rear spring strut to wheel carrier M16
Replace screw.
Tighten in normal position.tightening torque 250 Nm
Follow-up work
- Refer to IF INSTALLED: CONNECTING THE CONNECTOR TO THE SERVOMOTOR OF THE REAR AXLE DIFFERENTIAL .
- Refer to IF INSTALLED: SECURING CABLE .
- Refer to IF INSTALLED: CONNECTING THE CABLE (ADDITIONAL WORK ON ACTIVE STABILIZER .
- Refer to CONNECTING THE CONNECTORS ON LEFT AND RIGHT .
- Refer to SECURING CABLES ON RIGHT AND LEFT .
- Refer to CONNECTING THE CONNECTOR TO THE REAR RIDE HEIGHT SENSOR .
- Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
- Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING CENTER STIFFENING PLATE .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING REAR BUMPER PANEL .
- Refer to INSTALLING BOTH EXHAUST COVERS .
- Refer to INSTALLING THE REAR BUMPER TRIM .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to PERFORM CHASSIS ALIGNMENT CHECK .
