Installing The Tailgate
CAUTION:
Shutting hood or trunk lid
.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.

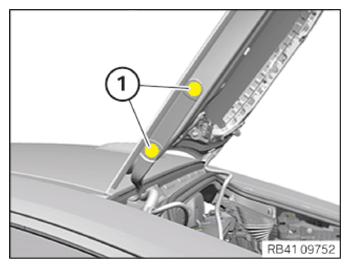

- Position trunk lid on hinges on both sides.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATION

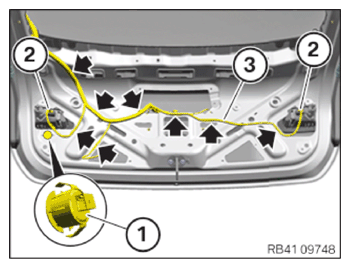

Trunk lid to the hinge Hexagon screw M10 Tightening torque 56 Nm - Feed the wiring harness (3) into the tailgate and attach it to the attachment points (arrows).
- Install rubber grommet (2). While doing this, make sure that it is fitted correctly (watertightness).
- Connect connectors (1) and lock.

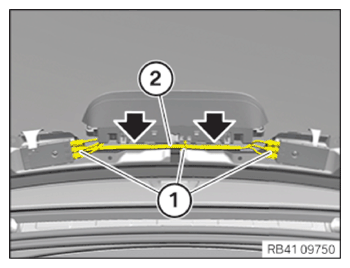

- Attach the wiring harness (2) at the attachment points (arrows).
- Connect connectors (1) and lock.

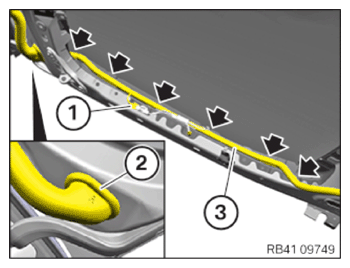

- Feed the wiring harness (3) into the tailgate and attach it to the attachment points (arrows).
- Install rubber grommet (2). Ensure correct installation. (watertightness).
- Connect connectors (1) and lock.

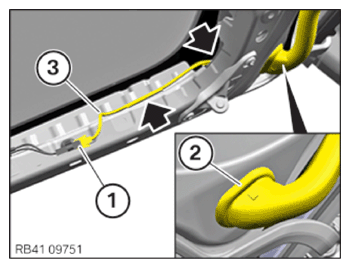

- Attach the wiring harness (3) at the attachment points (arrows).
- Connect connectors (2) and lock.
- Connect the connector for the buzzer (1) and lock it and install the buzzer (1).
Follow-up work
- Refer to INSTALLING THE SPINDLE DRIVE OF THE TAILGATE ON THE LEFT AND RIGHT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
- Refer to INSTALL LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL, LEFT .
- Refer to INSTALLING THE INSTALLED PARTS OF THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LED IN THE LEFT AND RIGHT CARGO AREA .
- Refer to INSTALL COVER OF THE LUGGAGE COMPARTMENT SIDE SHELF LEFT AND RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALL LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALL THE FRONT STORAGE SHELF .
- Refer to INSTALLING THE LICENSE PLATE LIGHT ON LEFT AND RIGHT .
- Refer to INSTALL THE REAR VIEW CAMERA (RFK) .
- Refer to INSTALLING TAILGATE BUTTON .
- Refer to INSTALL THE VIBRATION ABSORBER ON THE TRUNK LID .
- Refer to INSTALLING THE TAILGATE TRIM PANEL .
- Refer to INSTALL THE POWER TAILGATE SWITCH .
- Refer to INSTALL TRIM FOR THE SIDES OF THE REAR WINDOW FRAME TO THE LEFT AND RIGHT .
- Refer to INSTALL THE TRIM FOR THE TOP REAR WINDOW FRAME .
- Refer to INSTALLING THE REAR STORAGE SHELF .
