Installing luggage compartment wheel arch trim panel on right
NOTE:
TECHNICAL INFORMATION
The number of connectors on the described component may vary depending on the equipment version.
If necessary, unlock and disconnect, or connect and lock, all other connectors.
The number of connectors on the described component may vary depending on the equipment version.
If necessary, unlock and disconnect, or connect and lock, all other connectors.

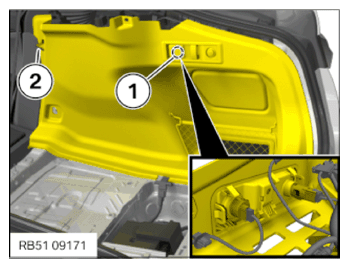

- Position the luggage compartment wheel arch trim panel and feed in over the retaining clip (2).
- Connect connectors (1) and lock.

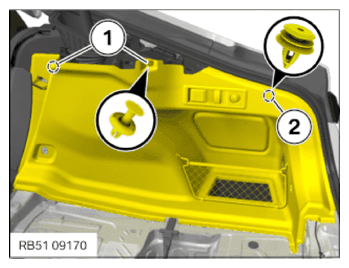

- Feed in the luggage compartment wheel arch trim panel under the sealing lip of the tailgate seal.
- Clip in the clip (2) and fasten the expanding rivets (1).
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

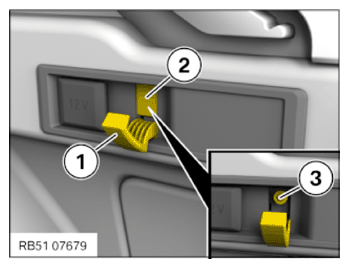

- Fold out multi-function hook (1).
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATION
| Control unit to mount | ||
| Oval-head screw for thermoplastic | Tightening torque | 3 Nm |
- Clip in the cover (2).
- Fold in the multifunction hook (1).
Installing the emergency release handle for the tailgate (additional work for US version)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Attach the Bowden cable (2).
- Fasten the emergency release handle (1) for the tailgate to the holder.
