Installing the spindle drive of the tailgate on the left and right
CAUTION:
Shutting hood or trunk lid.
Injury hazard!
Injury hazard!
- Support hood/trunk lid in fully open position with the aid of a suitable device.
NOTE:
RISK OF DAMAGE
Damage to the spindle drive.
If the trunk lid is not opened completely, the spindle drive may be damaged.
Damage to the spindle drive.
If the trunk lid is not opened completely, the spindle drive may be damaged.
- Remove and install the spindle drive only when the Trunk lid is open to the maximum extent.
NOTE:
TECHNICAL INFORMATION
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING HOOD BALL SOCKETS WITH CLIP .
The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
For additional information see: REMOVING/INSTALLING HOOD BALL SOCKETS WITH CLIP .
NOTE:
Description is for left component only. Procedure on the right side is identical.

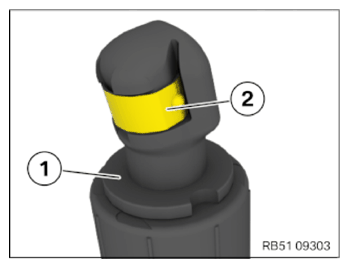

- Before installing the spindle drive, (1) make sure that the top and bottom clamps (2) are in their initial position.

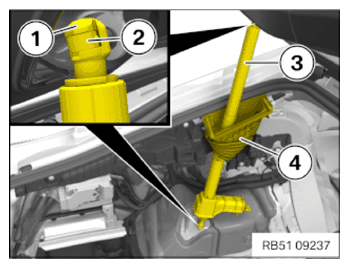

- Fit the spindle drive (3) with the funnel (4).
- Press the spindle drive (3) onto the ball hub (1), both on the top and at the bottom, until the clamps (2) engage audibly.
- Feed in the funnel (2) below the sealing lip of the tailgate seal.
- Clip the funnel (2) into the clamps (3).

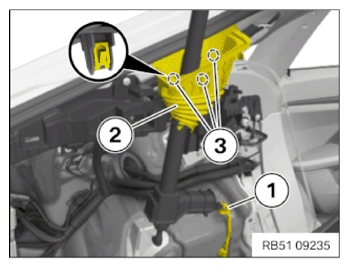

- Connect connectors (1) and lock.
