Install trim for the sides of the rear window frame to the left and right
NOTE:
Perform the steps on the left and right side.
Install trim for the sides of the rear window frame
NOTE:
Description is for left component only. Procedure on the right side is identical.
Check

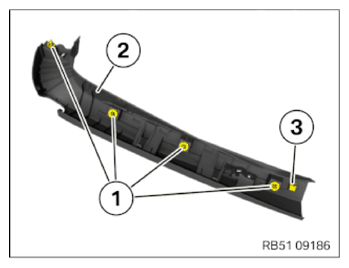

- Check the clips (1) on the trim (2) for the sides of the rear window frame for damage, replace if necessary.
- Check the lock (3) on the trim (2) for the sides of the rear window frame for damage.
Result
» The detent (3) is damaged.
Measure
- Replace the trim (2) for the sides of the rear window frame.

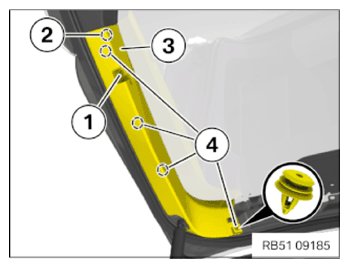

- Fit the trim (3) for the sides of the rear window frame and position it.
- Clip in the trim (3) for the sides of the rear window frame with the clips (4) and the lock (2).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
| Tailgate trim panel to trunk lid | ||
| Oval-head screw | tightening torque | 1.6 Nm |
