Remove oil vacuum pump

WARNING: High-voltage system .
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see:
SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see:
NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

WARNING: Car may slip off the vehicle hoist where components are supported .
Danger! Immobilization period-threatening injuries!

Secure the vehicle hoist against lowering and lifting.
Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly .
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .

WARNING: Car may slip off the vehicle hoist if the weight is distributed unevenly .
Danger! Immobilization period-threatening injuries!

Ensure there is a specific weight compensation on the car.

WARNING: Heavy component falling down or tipping .
Danger! Immobilization period-threatening injuries!

Before lowering or removing the front axle: Secure the engine in the installation position.
For additional information see: SECURING ENGINE IN INSTALLATION POSITION .

WARNING: Working on 12 V electrical system .
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .

Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING THE LATERAL HOOD SEALS .
Refer to REMOVING THE SIDE PANEL SEAL .
Refer to RELEASING THE WIRING HARNESS SECTION ON THE LEFT SHOCK TOWER .
Refer to RELEASING THE WIRING HARNESS SECTION AT THE RIGHT SHOCK TOWER .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to IF INSTALLED: REMOVE THE UNDERBODY PROTECTION OF THE STEERING SYSTEM .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE BOTTOM WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .

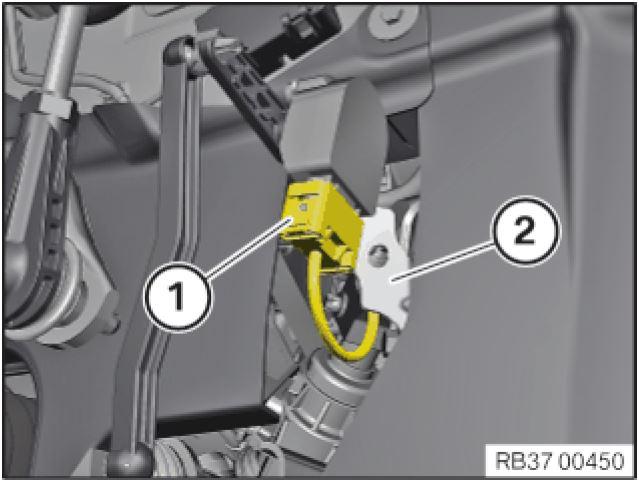

Unlock plug connection (1) and disconnect.
Unclip the line from holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Refer to DISCONNECTING THE LEFT AND RIGHT ANTI-ROLL BAR LINK FROM THE ANTI-ROLL BAR .
Refer to PARTIALLY REMOVING THE LEFT AND RIGHT BRAKE VENTILATION DUCT .
Refer to PREPARING THE SPECIAL TOOL .
Refer to LOWERING FRONT AXLE SUPPORT .
Refer to RELEASING THE OIL DRAIN PLUG .
Refer to TIGHTENING THE OIL DRAIN PLUG .
Refer to REMOVING THE THERMOSTAT FROM THE TRANSMISSION OIL LINES .
Refer to REMOVING THE HOLDER FOR THE THERMOSTAT ON THE TRANSMISSION OIL LINE .
Refer to REMOVING THE ACOUSTIC COVER OF THE OIL SUMP .
Refer to REMOVING STARTER MOTOR .
Refer to REMOVING OIL SUMP .

NOTE: RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
The thread is a left-hand thread.

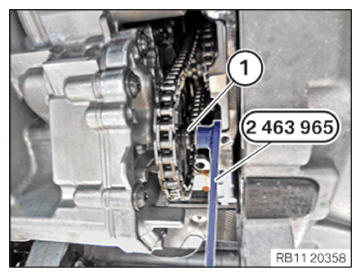

Release screw (1) using special tool 2 463 965 .

Courtesy of BMW OF NORTH AMERICA, INC.

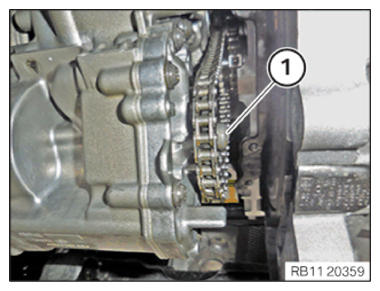

Guide out and remove the screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

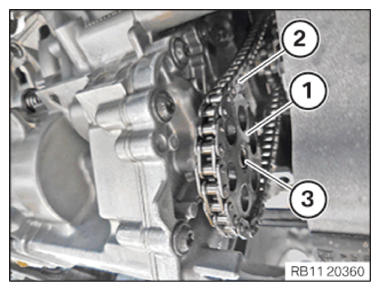

Release the sprocket wheel (1) from the oil vacuum pump (3) .
Guide the sprocket wheel (1) out of the drive chain (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

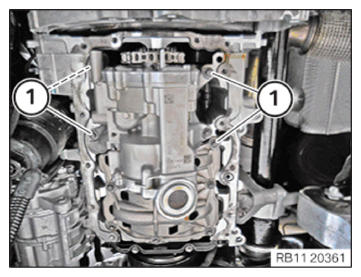

Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

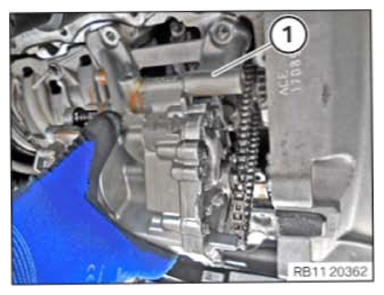

Guide out and remove the oil vacuum pump (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
