Maintenance And General Information -- Repair (G20)
>>
00 00 Maintenance
>>
00 00 252 BMW engine oil service without supplementary service (330e PHEV and 330e xDrive PHEV)
>>

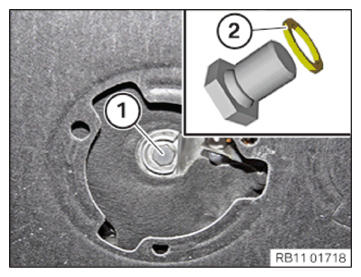

Tightening the oil drain plug
Tightening the oil drain plug
Replace sealing ring
(2)
.
Parts:
Sealing ring
Position oil drain plug
(1)
on the oil sump and tighten.
TIGHTENING TORQUE SPECIFICATION
Oil drain plug
M12x16
Replace the sealing ring.
Tightening torque
25 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Install service cap
(1)
.
