51 44 011 Removing and installing/replacing headlining (version with slide/tilt sunroof)

Necessary preliminary tasks:

Open coat hook halfway.

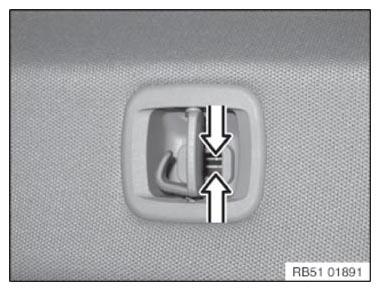

Press clamps together and feed coat hook out towards the inside.

Fig 1: Pressing Headlining Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

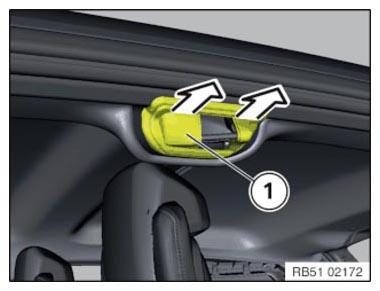

Remove left and right trim (1).

Fig 2: Removing Left And Right Trim

Courtesy of BMW OF NORTH AMERICA, INC.

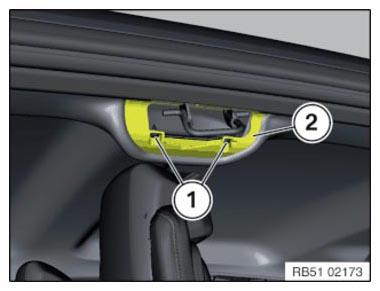

Release left and right screws (1) and take off left and right trims (2).

Fig 3: Identifying Trims And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Open slide/tilt sunroof.

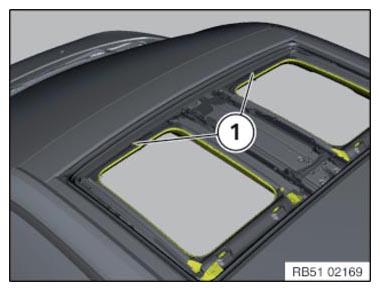

Release screws (1).

Fig 4: Identifying Slide/Tilt Sunroof Screws

Courtesy of BMW OF NORTH AMERICA, INC.

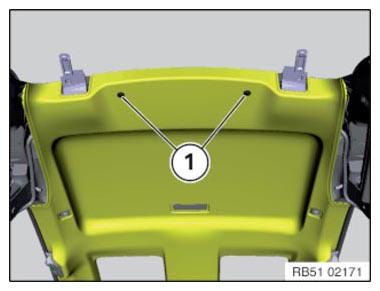

Release expanding rivet (1).

Fig 5: Identifying Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

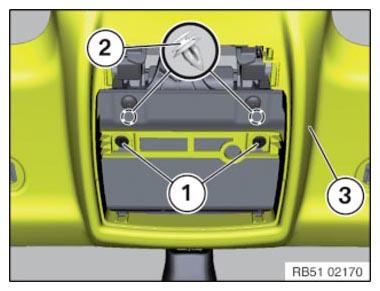

Release expanding rivet (1).

Unclip headlining (3) at clip (2).

Fig 6: Identifying Expanding Rivet, Headlining And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust backrest of driver's and front passenger seat all the way back.

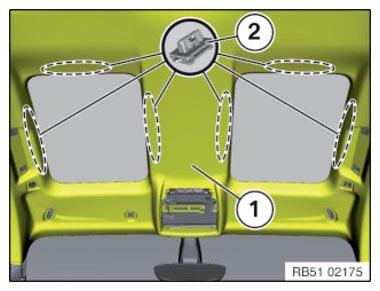

Release headlining (1) from clips (2) in downward direction in the marked areas.

Installation note:

If necessary, replace faulty clips (2).

Fig 7: Identifying Headlining And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

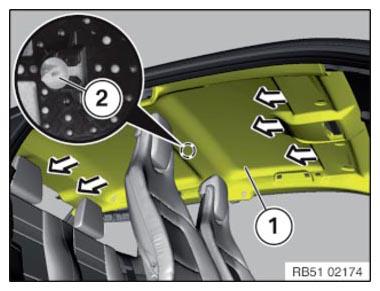

Carefully pull headlining (1) rearward until headlining (1) is fed out of clip (2).

Open all doors and side windows.

Feed out headlining (1) with an assistant.

Pull down headlining (1).

Fig 8: Removing Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

installation sequence:
