51 43 251 Removing and installing or replacing trim from rear left or right roof pillar

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Lever out trim (1) and release screw underneath.

Release trim panel (2) at clip (3).

Release trim panel (2) upwards out of latch mechanisms in area (4).

Installation note:

Make sure trim panel (2) edge protection is correctly seated.

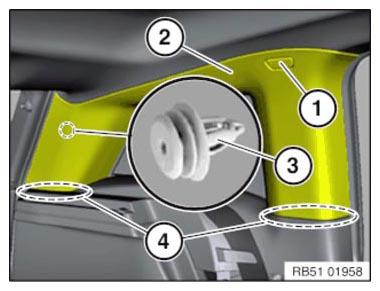

Fig 1: Identifying Trim, Clip And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The following parts of the trim panel (1) must not be missing or damaged:

(2) Clip

(3) Foam material

(4) Catches

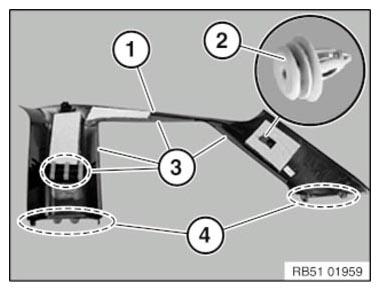

Fig 2: Identifying Trim Panel, Clip, Foam Material And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
