84 31 550 Removing and installing/replacing hands-free microphone, driver's/passenger's side

Special tools required:

Removal:

Lever out the microphone (1) as shown using the special tool 00 9 340 .

Pull the microphone (1) out of the headlining.

Unlock and disconnect corresponding connector.

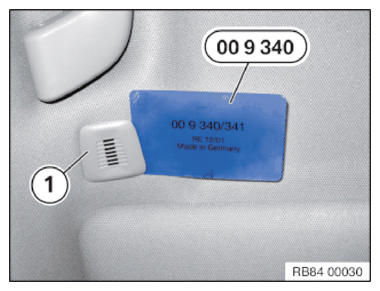

Fig 1: Levering Out Microphone Using Special Tool (00 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Loosen the latch mechanism (1) and remove the microphone (2) from the trim (3).

Fig 2: Removing Microphone From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect the corresponding connector to the microphone (1).

Fit the microphone (1) into the headlining (2).

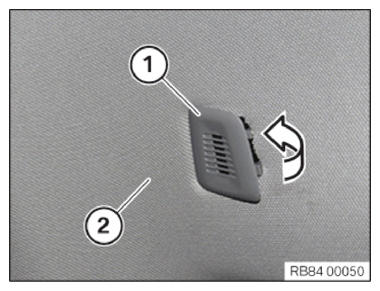

Fig 3: Fitting Microphone Into Headlining

Courtesy of BMW OF NORTH AMERICA, INC.
