63 31 003 Removing and installing/replacing complete interior roof light (rear)

Special tools required:

00 9 340
00 9 325

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

IMPORTANT: Risk of damage, protect headlining using special tool 00 9 340 as shown!

Lever out interior roof light (1) in direction of arrow using special tool 00 9 325 .

Unlock and disconnect associated plug connection, remove interior roof light (1).

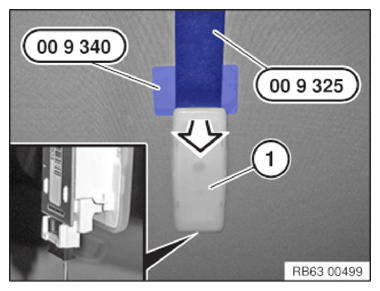

Fig 1: Removing Interior Roof Light

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Removal of interior roof light not possible without causing damage (deformation of retaining clips).
The interior roof light must therefore be replaced!
