51 16 080 Removing and installing or replacing sun visor and left or right counter support

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Detach sun visor from counter support.

Open cover and release screw underneath.

Remove counter supports.

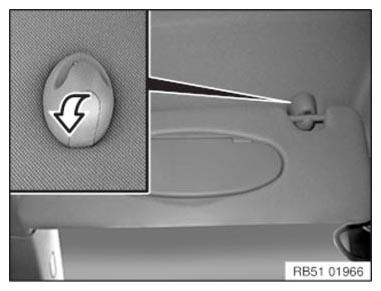

Fig 1: Opening Cover Of Screw Underneath

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out covers and release screws underneath.

Remove sun visor, and if necessary, disconnect corresponding plug connection.

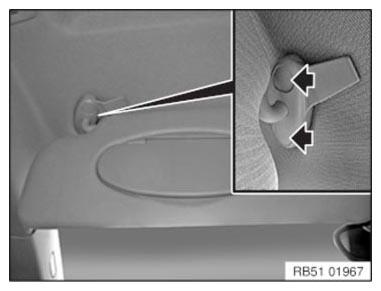

Fig 2: Locating Cover Of Screw Underneath

Courtesy of BMW OF NORTH AMERICA, INC.
