Installing the radial shaft seal for the output on the transfer box (VTG)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Apply oil to sealing lip of new radial shaft seal.
Drive in the radial shaft seal to the stop using special tool 2 407 561 .

Courtesy of BMW OF NORTH AMERICA, INC.
Check the dust plate for damage and, if necessary, replace it.

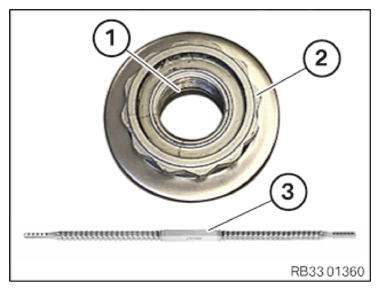

Clean thread (1) of twelve-edge flange nut (2) with thread file (3) .
The thread pitch must be correct!
Clean twelve-edge flange nut (2) thoroughly to remove grease residue and adhesive residue.

Courtesy of BMW OF NORTH AMERICA, INC.

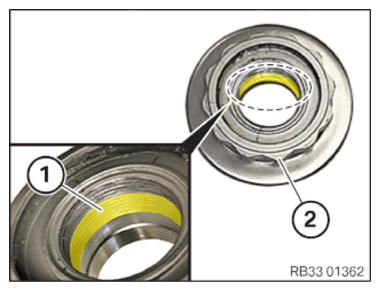

Top up recessed collar (1) of the twelve-edge flange nut with grease.
Apply a thin layer of grease to the surface (2) of the twelve-edge flange nut.

CONSUMABLE SPECIFICATION

Lubricating grease Optitemp HT 1 LF

50 g, Tube

83230417754

Courtesy of BMW OF NORTH AMERICA, INC.

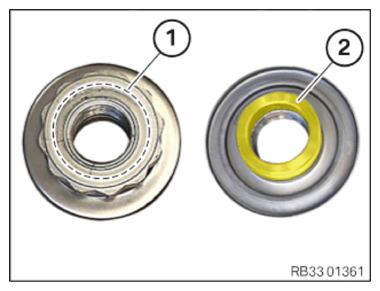

Coat the 5 rear threads (1) of the twelve-edge flange nut (2) with adhesive.
ADHESIVE SPECIFICATION

Adhesive Loctite 648 50 ml, Bottle 07589067732

Courtesy of BMW OF NORTH AMERICA, INC.

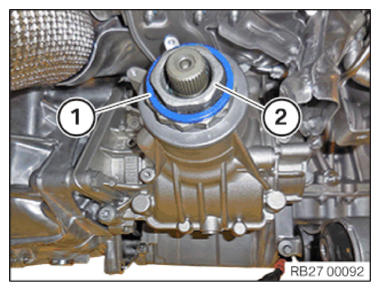

Do not tighten the twelve-edge flange nut (1) via the marker point of the bevel drive pinion (2) to avoid damage to the transfer box.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the recessed nut (2) in the twelve-edge flange nut.
Attach the retaining ring (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TRANSFER BOX (VTG) .
Refer to INSTALLING THE HOLDER WITH THE RUBBER MOUNT .
Refer to INSTALLING THE INTERMEDIATE SHAFT WITH THE SUPPORT TUBE .
Refer to INSTALLING INTERMEDIATE SHAFT WITH SUPPORT TUBE .
Refer to INSTALLING STARTER MOTOR .
Refer to PARTIALLY INSTALLING RIGHT OUTPUT SHAFT .
Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
Refer to MOUNTING THE WHEEL .
Refer to INSTALLING PROP SHAFT .
Refer to INSTALLING THE REAR HEAT SHIELD .
Refer to INSTALLING FRONT HEAT SHIELD .
Refer to INSTALLING EXHAUST SYSTEM .
Refer to INSTALLING THE CROSS-MEMBER WITH TORSION STRUTS .
Refer to INSTALLING THE CONNECTING SUPPORT ON THE TUNNEL AT FRONT AND REAR .
Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
Refer to CONNECTING THE BATTERY EARTH LEAD .
