Installing all intermediate levers
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
- Version with torsion spring with L-shaped contour and appropriate intermediate lever:
Use the torsion spring (1) with L-shaped contour only in connection with the appropriate intermediate lever (2) .
- Version with torsion spring with S-shaped contour and appropriate intermediate lever:
Use the torsion spring (1) with S-shaped contour only in connection with the appropriate intermediate lever (2) .
The description is provided only at one component. The procedure is the same for all other components.

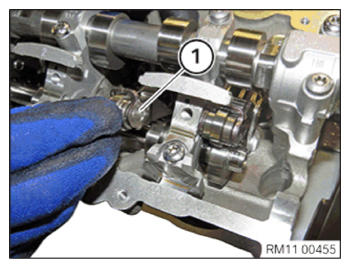

- Install the intermediate lever (1) .
Follow-up work
- Refer to INSTALLING ALL GATES .
- Refer to INSTALLING TORSION SPRINGS .
- Refer to INSTALLING CYLINDER HEAD COVER .
- Refer to ROTATING THE CAM OF THE HIGH-PRESSURE PUMP DRIVE TO THE BDC POSITION .
- Refer to INSTALLING HIGH PRESSURE PUMP .
- Refer to INSTALLING BOTH ACTUATORS .
- Refer to PREPARING THE INJECTORS FOR INSTALLATION .
- Refer to INSTALLING INJECTORS .
- Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE RAIL AND THE HIGH-PRESSURE PUMP .
- Refer to INSTALLING THE IGNITION COILS .
- Refer to PREPARING FOR THE INSTALLATION OF THE CLEAN AIR PIPE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to IF INSTALLED: PARTIALLY INSTALLING ENGINE VENTILATION LINE .
- Refer to INSTALLING THE REAR BULKHEAD .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to INSTALLING THE UPPER FIREWALL COVER PANEL .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to CONNECTING THE BATTERY EARTH LEAD
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CHECKING ENGINE OIL LEVEL .
