Install transmission oil cooler
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

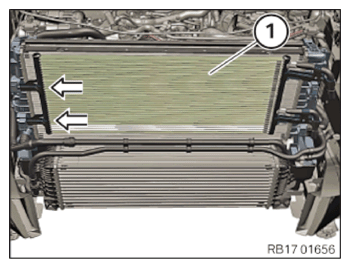

- Insert the transmission oil cooler (1)
in the direction of the arrow and install it.
- Tighten down screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission oil cooler on coolant radiator | ||
|---|---|---|
| TS6x20 | tightening torque | 6 Nm |
- Connect and lock transmission oil line (1) .
Follow-up work
- Refer to CHECKING/TOPPING UP OIL LEVEL IN AUTOMATIC TRANSMISSION (AISIN GA8G45) .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING AIR CONDITIONING CONDENSER .
- Refer to INSTALLING AIR DUCT TO RADIATOR .
- Refer to INSTALLING THE BUMPER CARRIER IN THE FRONT TOP .
- Refer to INSTALLING IMPACT ABSORBER .
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to INSTALLING TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING FRONT LEFT AND RIGHT WHEEL ARCH COVER .
- Refer to PARTIALLY INSTALLING THE WHEEL ARCH TRIM ON THE FRONT LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT CENTER HOOD SEAL .
- Refer to INSTALLING HOOD SEAL ON LEFT AND RIGHT SIDES .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
- Refer to CONNECTING THE BATTERY EARTH LEAD .
- Refer to EVACUATE AND CHARGE CONDITIONING .
