64 11 206 Removing and installing/replacing heating and air-conditioning unit
Special tools required:
Refrigerant circuit is under high pressure!
Avoid contact with refrigerant and refrigerant oil.
Read and comply with safety instructions:
- Handling R 134a (tetrafluorethane) refrigerant . See 64 50... NOTE FOR HANDLING R134A REFRIGERANT or 64 50... SAFETY INFORMATIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A .
- HANDLING REFRIGERANT OIL
Restart engine only when A/C system has been correctly filled.
Follow NOTES for opening and replacing parts in refrigerant circuit.
If air conditioning system is opened for more than 24 hours: Replace DESICCANT INSERT FOR AIR CONDITIONING SYSTEM .
Necessary preliminary tasks
- Drain off AIR CONDITIONING SYSTEM
- Remove SOUND INSULATION FROM BULKHEAD UPPER PART
- Remove blower housing for heating and air-conditioning unit . See 64 11 545 REMOVING AND INSTALLING BLOWER HOUSING FOR HEATING AND AIR-CONDITIONING UNIT or 64 11 545 REMOVING AND INSTALLING FAN HOUSING FOR HEATER/AIR CONDITIONER (N52T, N55) .
- Remove LEFT SUSPENSION CROSS-BRACE
- Remove SUPPORT FOR DASHBOARD
- Disconnect plug connections
- Unclip wiring harness mountings from heating and air-conditioning unit
Recycling
Coolant emerges when coolant lines are detached.
Have a suitable collecting vessel ready.
Catch and dispose of escaping coolant.
Observe country-specific waste disposal regulations.
Feed out line feed-through (1) towards top.
Release screws (1) and remove refrigerant lines (2) with associated gasket.
Tightening torque 64 53 1AZ .
Installation note:
Replace sealing rings.
Use special tool 00 9 030 to mount sealing rings without damaging them.
Mark connection sequence of water hoses prior to removal.
Release hose clamps (1) with special tool 17 2 050 and detach coolant hoses (2).
Close openings or line to heat exchanger with special tool 32 1 270 , to avoid media leak and dirt contamination.
Equipment specification with electric auxiliary heater only:

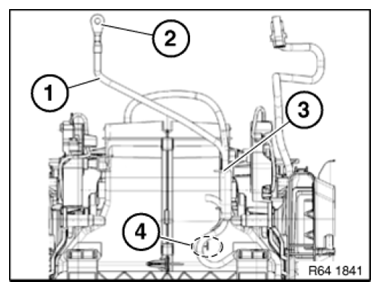

Release screw (1).
Remove grounding cable for electric auxiliary heater (2) from floor trim panel (3).
Run excess cable as shown in item (4).

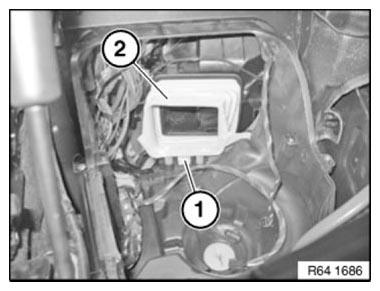

Unlock retaining lug (1) on gaiter (2).
Lever gaiter (2) out of guides.
Installation note:
Make sure retaining lug (1) and adjacent guides are correctly latched.

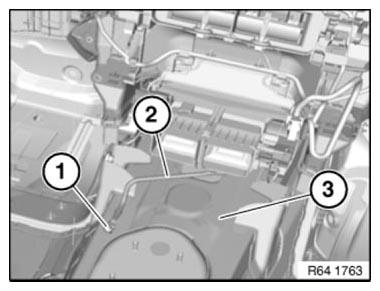

Unclip air ducts (2), left and right towards bottom, from heater/air conditioner (1).

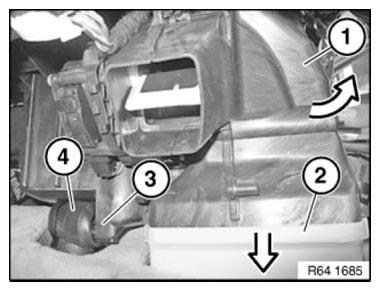

Feed out heating and air-conditioning unit (1) in direction of arrow.
Installation note:
Water drain (3) must be inserted on both sides into outlet channel (4).
Replacement
- Modify evaporator
- Modify HEAT EXCHANGER
- Modify EXPANSION VALVE
- Modify ALL ACTUATOR DRIVES
- Modify OZONE GENERATOR if necessary
- Modify ELECTRIC AUXILIARY HEATER (FRONT) if necessary
After installation
- EVACUATE AND FILL AIR CONDITIONING
- Bleed and fill cooling system
. See 17 00 039 VENTING AND FILLING COOLING SYSTEM WITH VACUUM FILLING UNIT
or 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATERTIGHTNESS (N63 B44 O 0)
.IMPORTANT: Filling and bleeding must not be performed in ECO-PRO MODE!
