64 12 670 Replacing electric auxiliary heater -front-

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove HEATING ELEMENT

Heater/air conditioner shown in removed state.

Unclip plug housing (1) from holder.

Feed positive lead (2) out of holders.

Installation:

Make sure positive lead (2) is correctly laid.

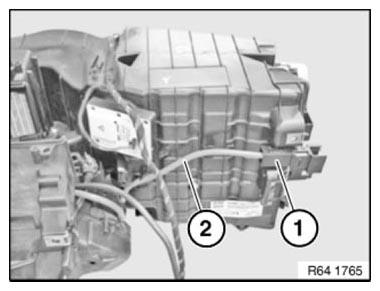

Fig 1: Identifying Positive Lead Out Of Holders And Plug Housing From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Pull electric auxiliary heater (1) upwards out of heating unit housing (2).

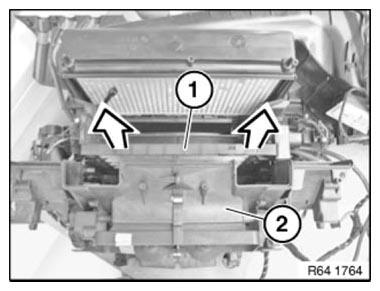

Fig 2: Pulling Electric Auxiliary Heater Upwards Out Of Heating Unit Housing

Courtesy of BMW OF NORTH AMERICA, INC.
