64 11.. Overview of actuator drives on heater/air conditioner

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

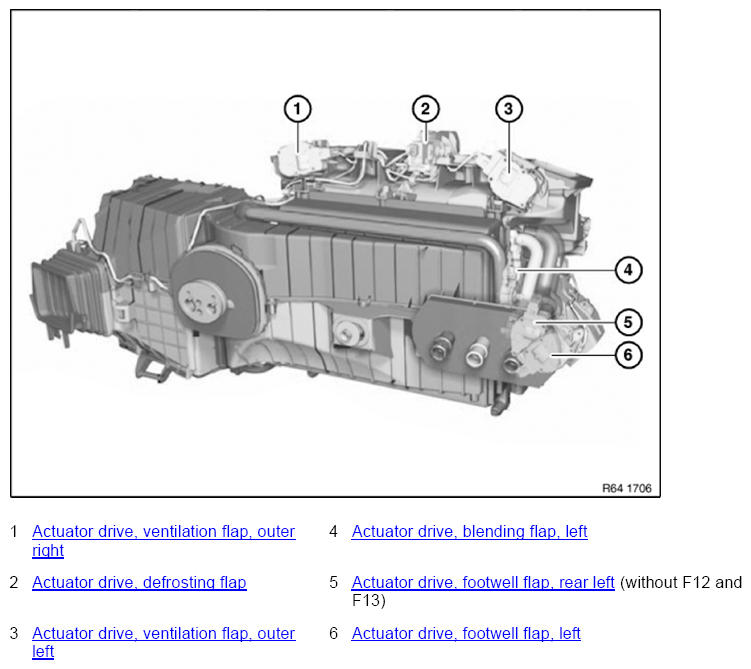

Fig 1: Overview Of Actuator Drives On Heater/Air Conditioner
G09881454Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!

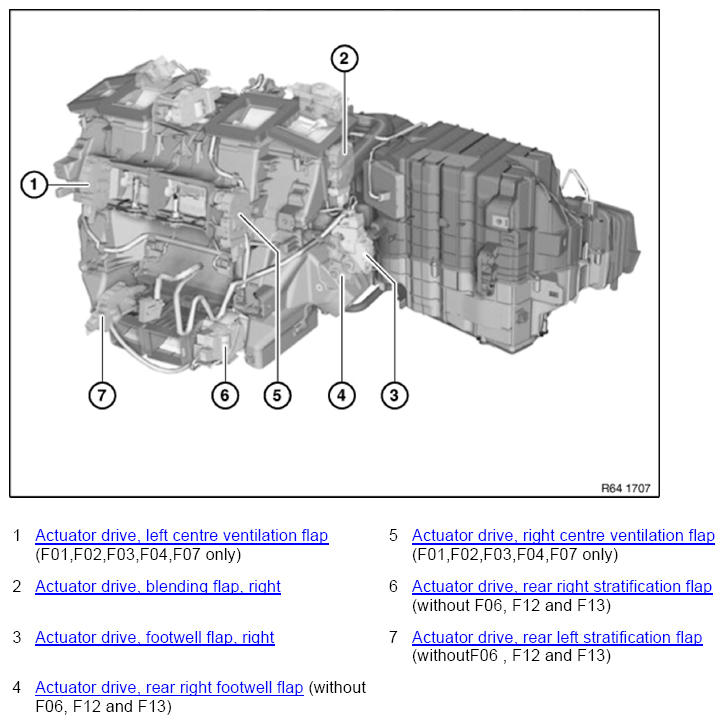

Fig 2: Overview Of Actuator Drives On High Equipment Specification Heater/Air Conditioner
G09881455Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!
