51 71 345 Removing and installing/replacing left (rear) suspension cross-brace
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Driving without the suspension cross-brace is not permitted! (risk of damage to the body).

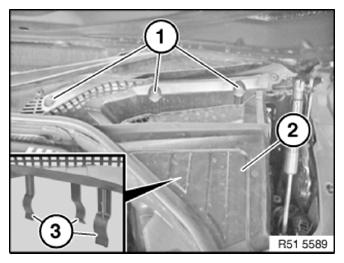

Release expanding rivet (1) and remove cover (2).
Installation note:
Replace damaged expanding rivet.
Holders (3) must snap into place in suspension cross-brace when cover (2) is installed.

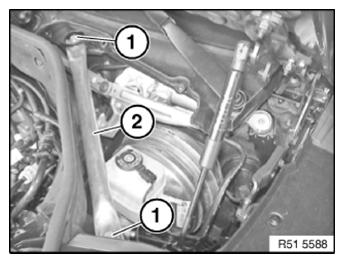

Release screw (1).
Tightening torque 51 61 1AZ .
Remove suspension cross-brace (2).
Installation note:
Make sure suspension cross-brace (2) is in correct installation position.
Replace screws (1).
