64 11 973 Removing and installing or replacing ozone generator (before 09/2010)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ozone generator was installed on vehicles built before 09/2010.

Necessary preliminary work

Remove RIGHT GLOVE BOX WITH HOUSING

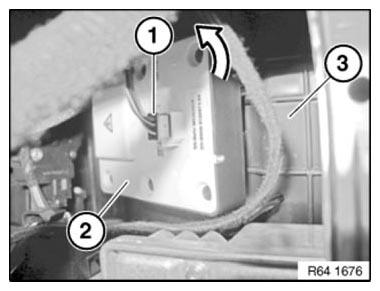

Disconnect plug connection (1).

Unlock ozone generator (2) in direction of arrow and remove towards front from filter housing (3).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

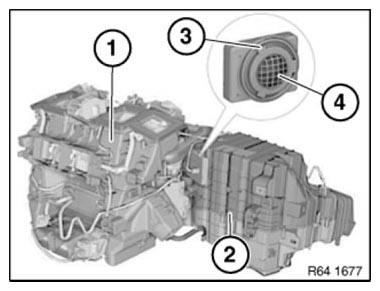

For purposes of clarity, illustration shows heating/air conditioning unit (1) removed.

Retaining lugs (3) on ozone generator (4) must be correctly engaged in guides on filter housing (3).

Fig 2: Identifying Retaining Lugs On Ozone Generator And Filter Housing Guides

Courtesy of BMW OF NORTH AMERICA, INC.
