51 45 075 Removing and installing (replacing) support for instrument panel

Necessary preliminary tasks:

• Remove INSTRUMENT PANEL TRIM
• Unclip wiring harness

Only if there is SA Head-Up Display

• REMOVE HEAD-UP DISPLAY

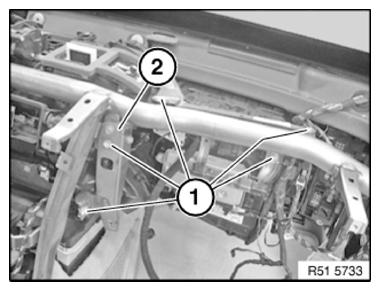

  Fig 1: Identifying Nuts And Screws On Tunnel

  Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) on A-pillar.

Tightening torque 51 45 2AZ .

Release screws (2) on tunnel.

Tightening torque 51 45 3AZ .

Release screws (1) on steering column support (2).

Tightening torque 51 45 1AZ .

Release screws (3) on steering column (4).

Tightening torque 32 31 1AZ .

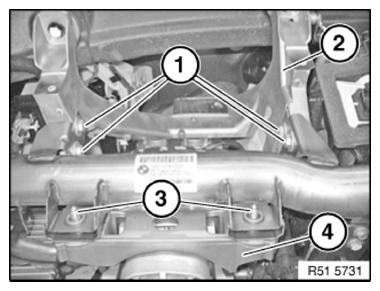

Fig 2: Identifying Screws, Steering Column And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on earth connection.

Release screw (2) on instrument panel trim holder (3).

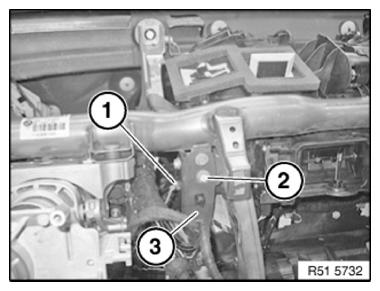

Fig 3: Identifying Screw And Instrument Panel Trim Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on instrument panel trim holder (2).

Remove instrument panel carrier and if necessary feed out through front passenger door.

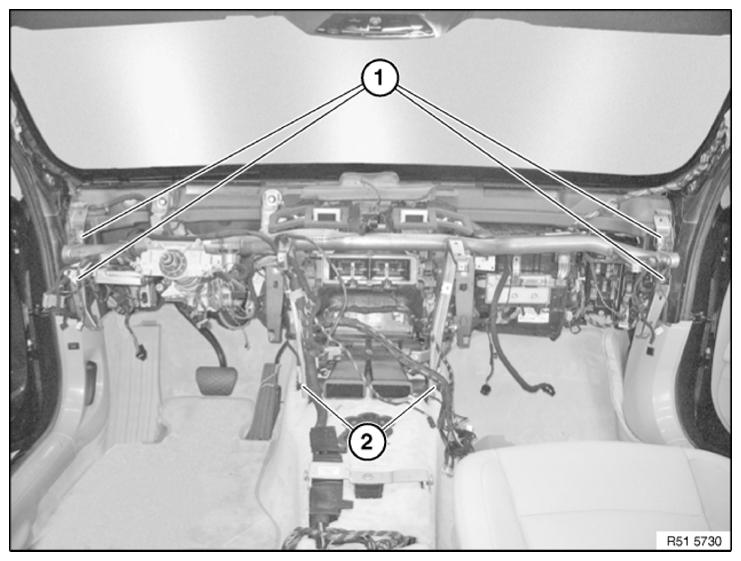

Fig 4: Identifying Screws On Instrument Panel Trim Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Only slacken screws (2) on steering column (1) near universal rubber joint.

Tightening torque 32 31 1AZ .

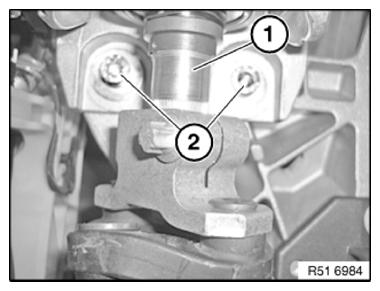

Fig 5: Slacken Screws And Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

Lower steering column support plate (2) by continuing to turn screws to measurement x underneath attachment points (1).

Measurement x = 25 mm

Remove support with assistance from second person.

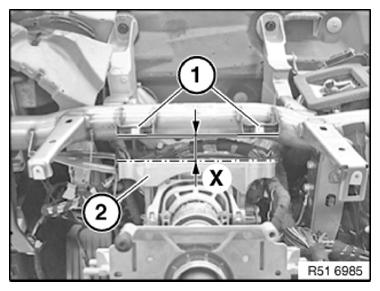

Fig 6: Identifying Steering Column Support Plate And Underneath Attachment Points

Courtesy of BMW OF NORTH AMERICA, INC.
