64 11 545 Removing and installing blower housing for heating and air-conditioning unit

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove RIGHT/REAR SUSPENSION CROSS-BRACE
REMOVE auxiliary electronics box

Unlock plug connection (1) on automatic air recirculation control sensor (2) and disconnect.

Fig 1: Identifying Plug Connection On Automatic Air Recirculation Control Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on blower housing cover (2).

Lift out blower housing cover.

Fig 2: Identifying Screws On Blower Housing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on fan housing (2).

Unlock plug connections (3) and disconnect.

Carefully feed out fan housing (2).

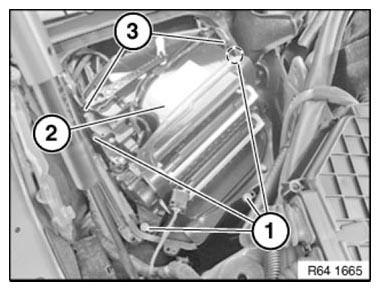

Fig 3: Identifying Screws On Fan Housing, Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
