51 45 030 Removing and installing instrument panel trim
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Observe the following instructions to facilitate removal of the instrument panel trim:
- Move front seats back completely and lower.
- Move steering column into "lower" and "extended" position.
Necessary preliminary tasks:
- Remove both TRIMS FOR FRONT ROOF PILLAR .
- Remove FIXTURE FOR STEERING COLUMN STALKS .
- Remove INSTRUMENT CLUSTER .
- Remove LIGHT OPERATOR UNIT .
- Remove ON-BOARD MONITOR .
- Remove TRIM PANEL FOR PEDAL ASSEMBLY .
- Remove STORAGE COMPARTMENT .
- Remove RIGHT GLOVEBOX WITH HOUSING .
- Remove TRIM FOR INSTRUMENT PANEL, BOTTOM LEFT .
- In appropriate version:
- Remove TRIM FOR HEAD-UP DISPLAY .
- Remove AUDIO SYSTEM CONTROLLER .
- Remove CAR COMMUNICATION COMPUTER .
- Release FRONT INNER AND FRONT OUTER CUP HOLDER CARRIERS .
If necessary, disconnect plug connection for speaker (1).
If necessary, unlock and disconnect PLUG CONNECTION FOR SOLAR SENSOR .

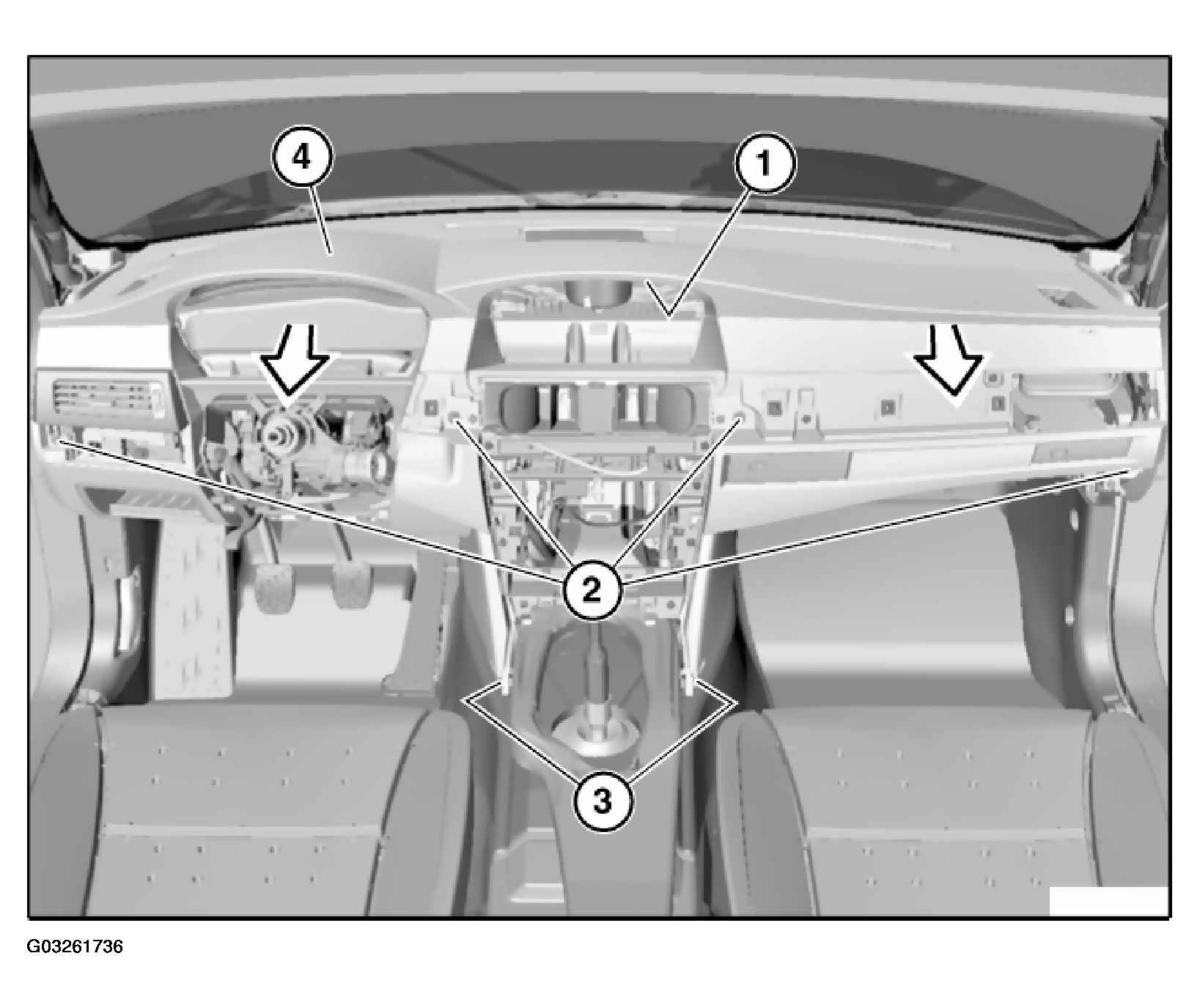

Unscrew nuts (2).
Release screws (3).
Pull back instrument panel trim (4) in direction of arrow and remove.
Installation:

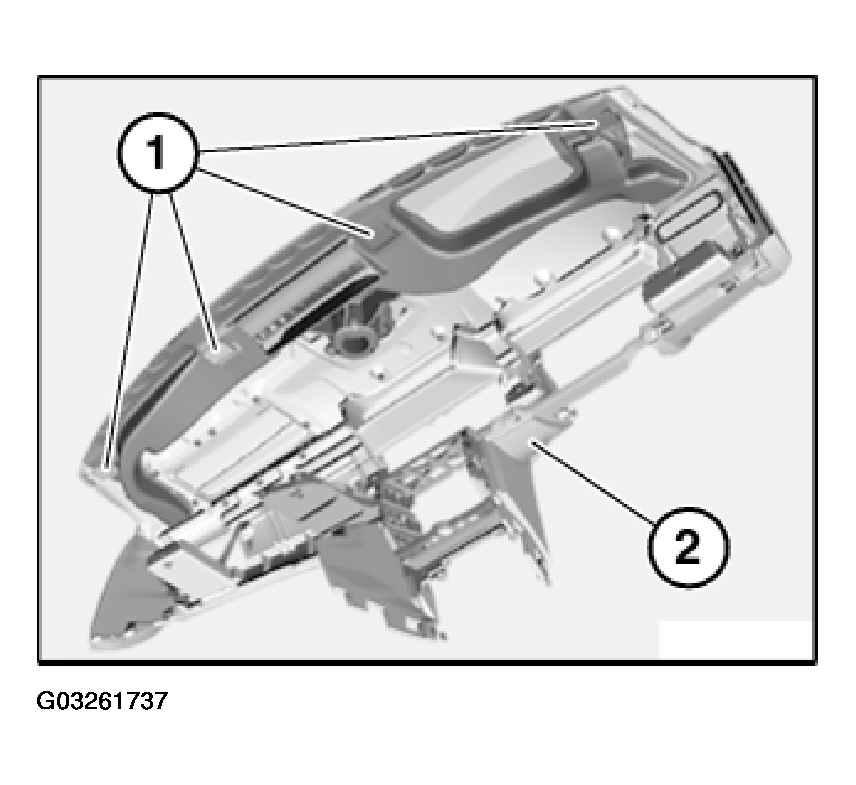

Make sure guides (1) of instrument panel trim (2) are correctly seated in mountings.
Make sure seals are correctly seated on air ducts.
