65 83 010 Removing and installing/replacing Car Communication Computer
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
NOTE:
Comply with notes and instructions on HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD .
- Remove MIDDLE TRIM FOR INSTRUMENT PANEL .
IMPORTANT:
Do not scratch center console trim, cover if necessary.

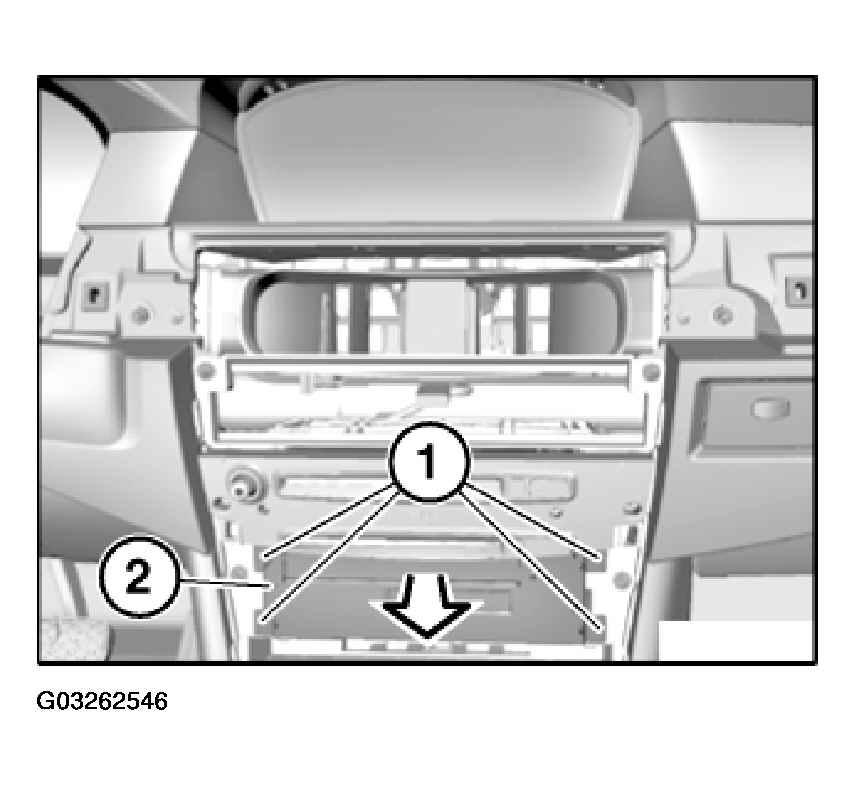

Release screws (1).
Pull back Car Communication Computer (2) slightly.
Unlock associated plug connections and disconnect.
Remove Car Communication Computer (2).
Replacement:
Carry out PROGRAMMING/CODING .
