65 12 200 Removing and installing (replacing) audio system controller
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Comply with notes and instructions on HANDLING OPTICAL FIBERS .
Necessary preliminary tasks:
- Clamp off BATTERY NEGATIVE LEAD .
- Remove MIDDLE TRIM FOR INSTRUMENT PANEL .
IMPORTANT:
Do not scratch center console trim, cover if necessary.

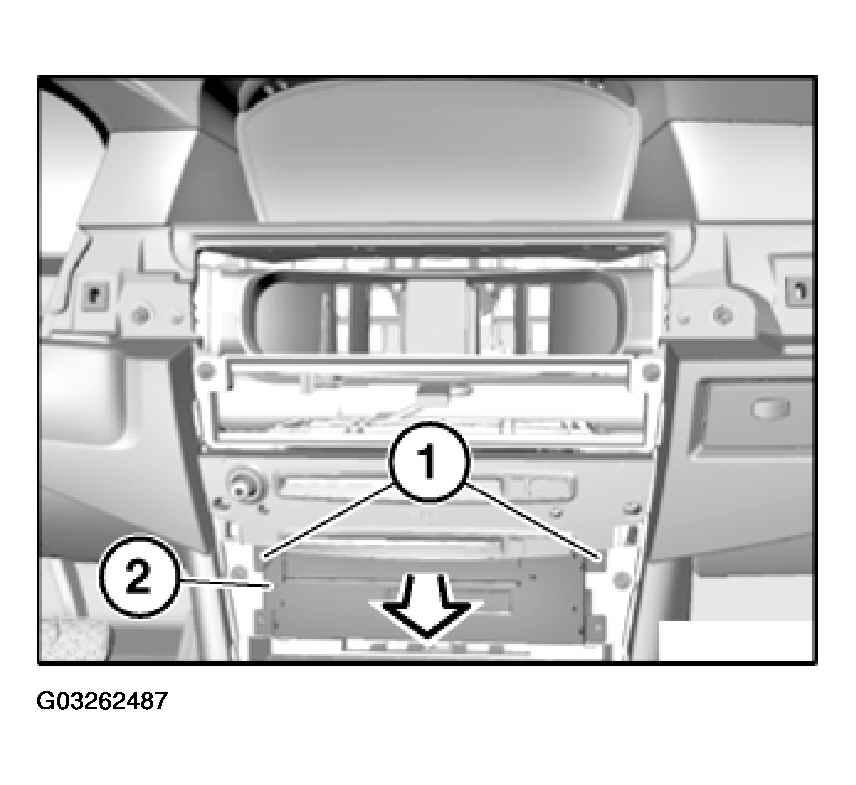

Release screws (1).
Tightening torque: 2.8 Nm
Pull back audio system controller (2) slightly.
Disconnect associated plug connections.
Remove audio system controller (2).
Replacement:
Carry out PROGRAMMING/CODING .
