61 31 037 Removing and installing/replacing lighting control unit
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 530xi. However, it is still accessible from the selected car via links, so may be relevant.

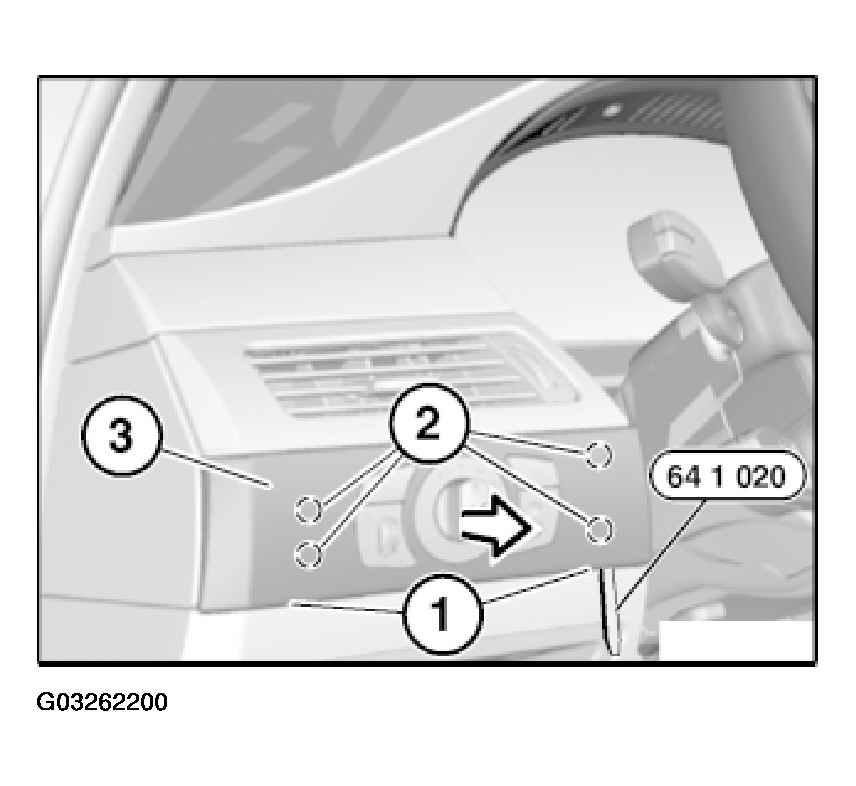

Attach special tool 64 1 020 at openings (1) and lever out catches (2).
Pull back lighting control unit (3).
Unlock and disconnect associated plug connection, remove lighting control unit (3).
Installation:

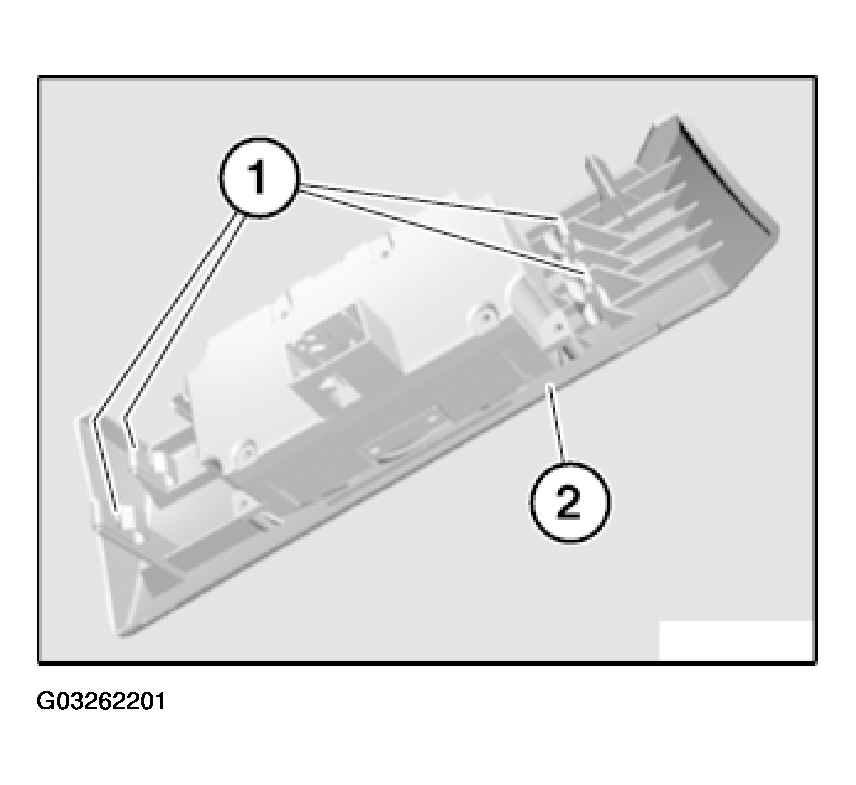

Make sure clips (1) are correctly seated on trim of lighting control unit (2).
