51 45 185 Removing and installing/replacing trim for pedal assembly

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Move driver's seat completely towards rear.

Drive bottom trim (1) towards rear with special tool 00 9 317 and remove.

Installation:

Make sure bottom trim (1) is correctly seated at retaining points (2).

Feed bottom trim (1) correctly into trim for pedal assembly (3).

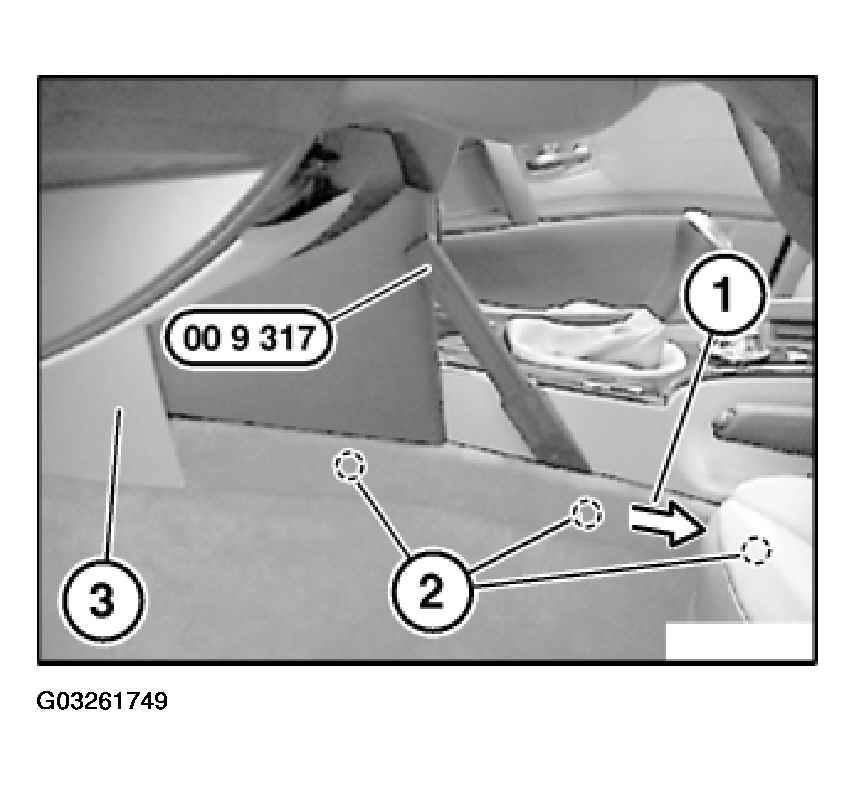

Fig 1: Installing Bottom Trim Into Trim For Pedal Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unclip trim for pedal assembly (3) at retaining points (2) in direction of arrow.

Pull back trim for pedal assembly (3).

Disconnect associated plug connections and remove trim for pedal assembly (3).

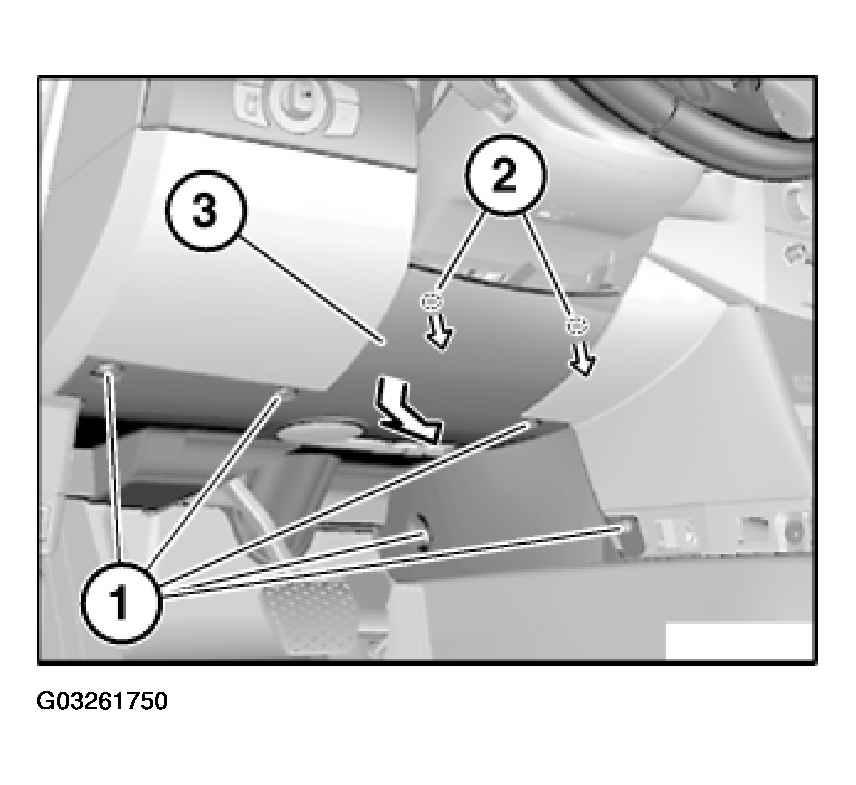

Fig 2: Disconnecting Associated Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove speaker for hands-free system.
Remove FOOTWELL LIGHT .
