51 45 181 Removing and installing/replacing bottom right trim for instrument panel

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Move front passenger seat completely towards rear.

Drive bottom trim (1) towards rear with special tool 00 9 317 and remove.

Installation:

Make sure bottom trim (1) is correctly seated at retaining points (2).

Feed bottom trim (1) correctly into bottom right trim for instrument panel (3).

Fig 1: Identifying Bottom Trim, Pedal Assembly And Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unclip trim for pedal assembly (3) at retaining points (2) in direction of arrow.

Pull back trim for pedal assembly (3).

Disconnect associated plug connections and remove trim for pedal assembly (3).

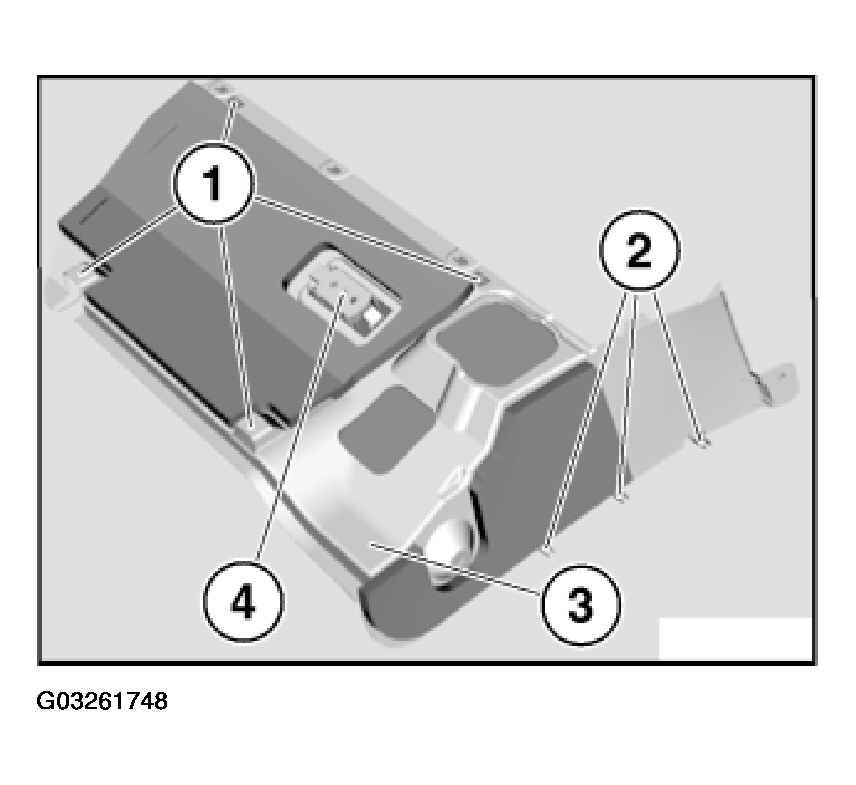

Fig 2: Identifying Screws, Pedal Assembly And Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Disconnecting the plug connection for the hands-free system speaker results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).

After fitting, read out fault memory and if necessary delete entries.

Replacement :

Remove SPEAKER FOR HANDS-FREE SYSTEM
Remove FOOTWELL LIGHT

Security version:

Remove intercom system speaker

Fig 3: Removing Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.
