62 11 200 Replacing instrument cluster display system

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Refit instrument cluster electronics, refer to 62 11 210 REPLACING INSTRUMENT CLUSTER ELECTRONICS

Twist and remove bulb receptacles.

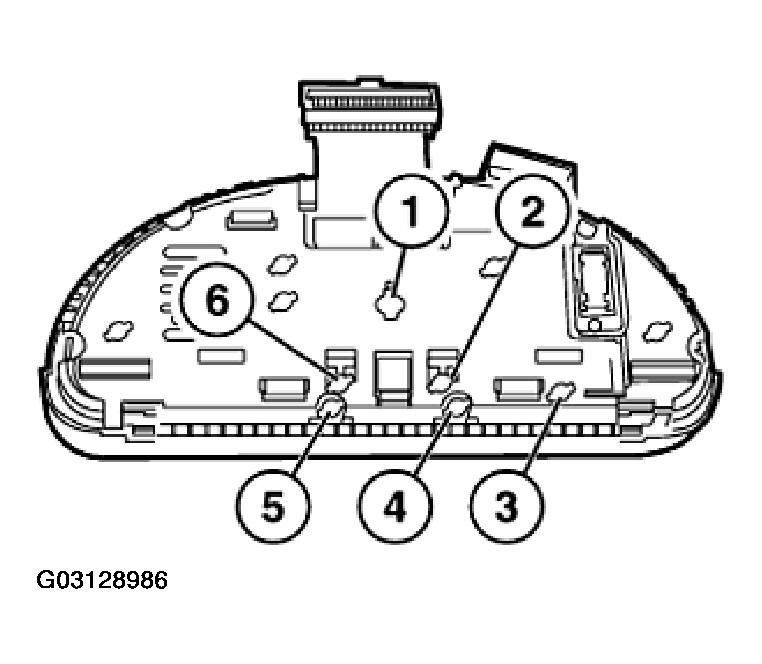

Fig 1: Twisting & Removing Bulb Receptacles
G03128986Courtesy of BMW OF NORTH AMERICA, INC.
