51 11 157 Replacing front bumper trim

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

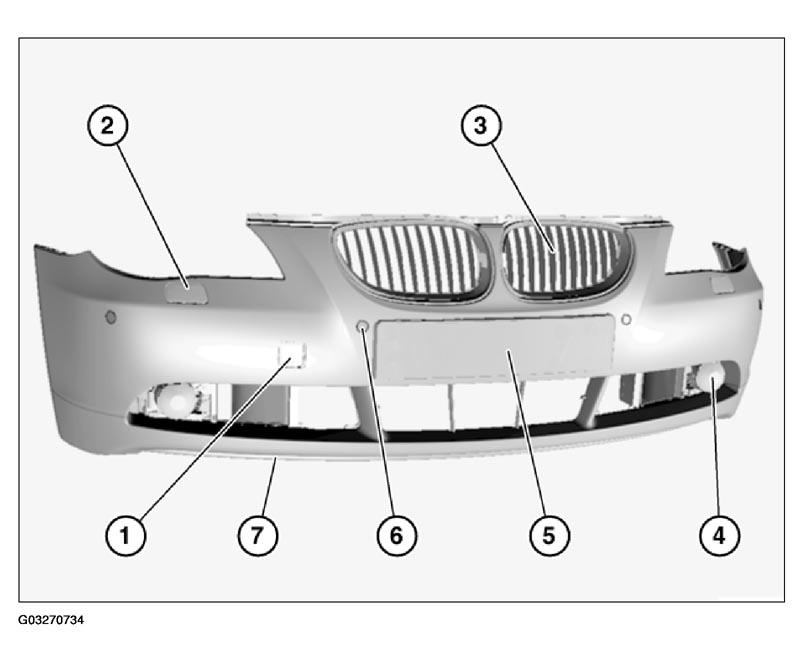

Fig 1: Identifying Front Bumper Components
Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover cap (1) for tow lug.

Remove cover for headlight cleaning system (2). Refer to 51 11 ... REMOVING AND INSTALLING/REPLACING COVER FOR HEADLIGHT CLEANING SYSTEM ON LEFT .

Remove front radiator grille (3) on left/right. Refer to 51 13 001 REMOVING AND INSTALLING/REPLACING FRONT RADIATOR GRILL, MIDDLE LEFT OR RIGHT .

Remove front fog lamps (4) on left/right (not M5). Refer to 63 17 060 REMOVING AND INSTALLING (REPLACING) LEFT OR RIGHT FRONT FOG LAMP .

If necessary, remove license plate (5). Refer to 51 11 ... INSTALLING/REPLACING LICENSE PLATE (WITHOUT BASE) .

If necessary, remove baseplate for license plate. Refer to 51 11 158 REPLACING BASEPLATE FOR LICENCE PLATE .

Installation:

Marker lines are located on inside of bumper for equipment with M and M5 aerodynamic kits. These lines denote the drilling position for the license plate baseplate.

If necessary, remove wiring harness and PDC ultrasonic sensor (6).66 20 520 REMOVING AND INSTALLING/REPLACING AN ULTRASONIC TRANSDUCER AT FRONT (PARK DISTANCE CONTROL) .

Remove damping lip/spoiler (7).

If equipped with M aerodynamic kit:

Remove front fog lamp trim. Refer to 51 11 ... REMOVING AND INSTALLING/REPLACING FRONT FOG LAMP TRIM (M AERODYNAMIC KIT) .

Remove grille in bumper trim. Refer to 51 11 180 REMOVING AND INSTALLING/REPLACING GRILLE IN BUMPER TRIM (M5 OR M AERODYNAMIC KIT) .

M5 only:

Remove grille in bumper trim.
