51 11 ... Removing and installing/replacing front fog lamp trim (M aerodynamic kit)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - 545i (4.4L) E60/N62 .

Special Tools Required:

64 1 020

Partially fit special tool 64 1 020 as illustrated.

Lever out fog lamp trim (2) at retaining lugs (1).

Feed fog lamp trim (2) out of outer bracket (3) and remove from bumper trim (4).

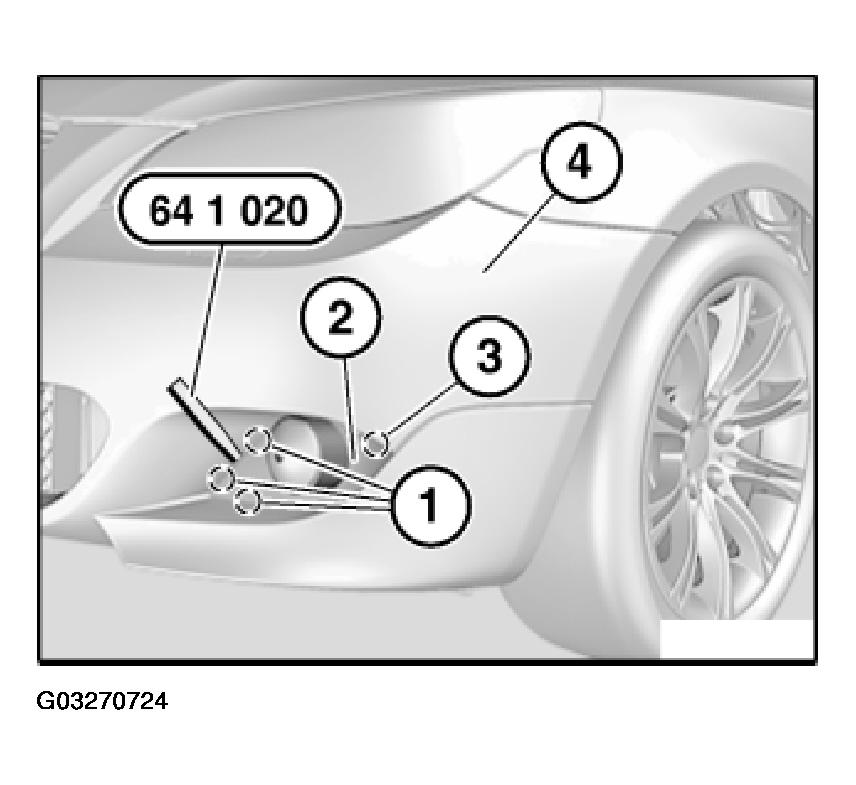

Fig 1: Locating Retaining Lugs For Fog Lamp Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining lugs (1) and outer guide (2) of fog lamp trim (3) must not be damaged.

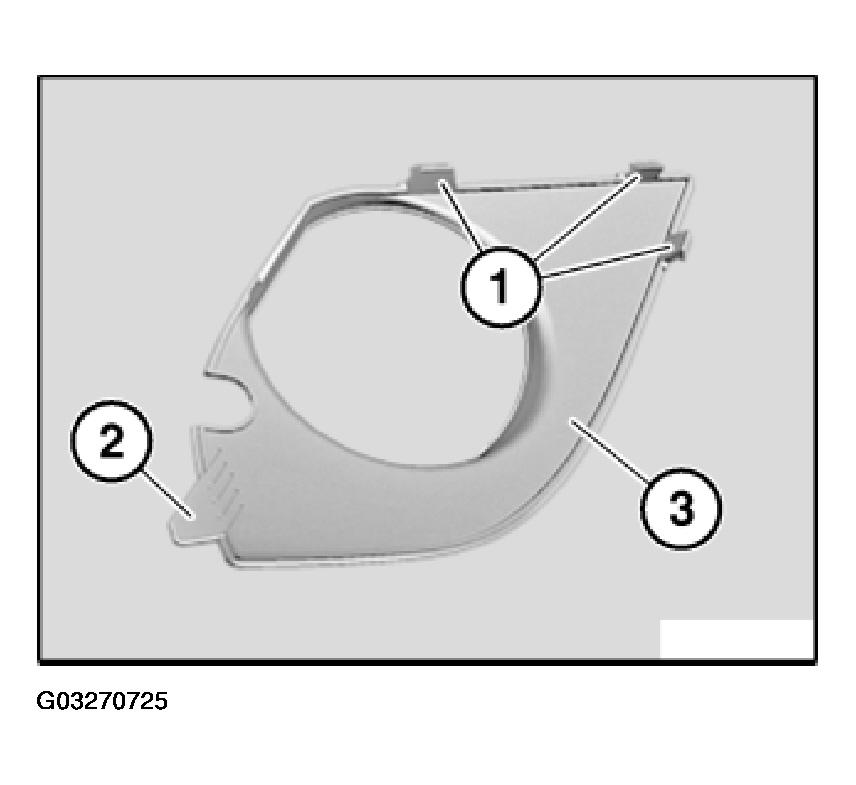

Fig 2: View Of Retaining Lugs Of Fog Lamp Trim

Courtesy of BMW OF NORTH AMERICA, INC.
