66 20 520 Removing and installing/replacing an ultrasonic transducer at front (Park Distance Control)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Unfasten plug connection (1) and disconnect.

Unlock catches (2) in direction of arrow and pull ultrasonic transducer (3) out of bracket (4).

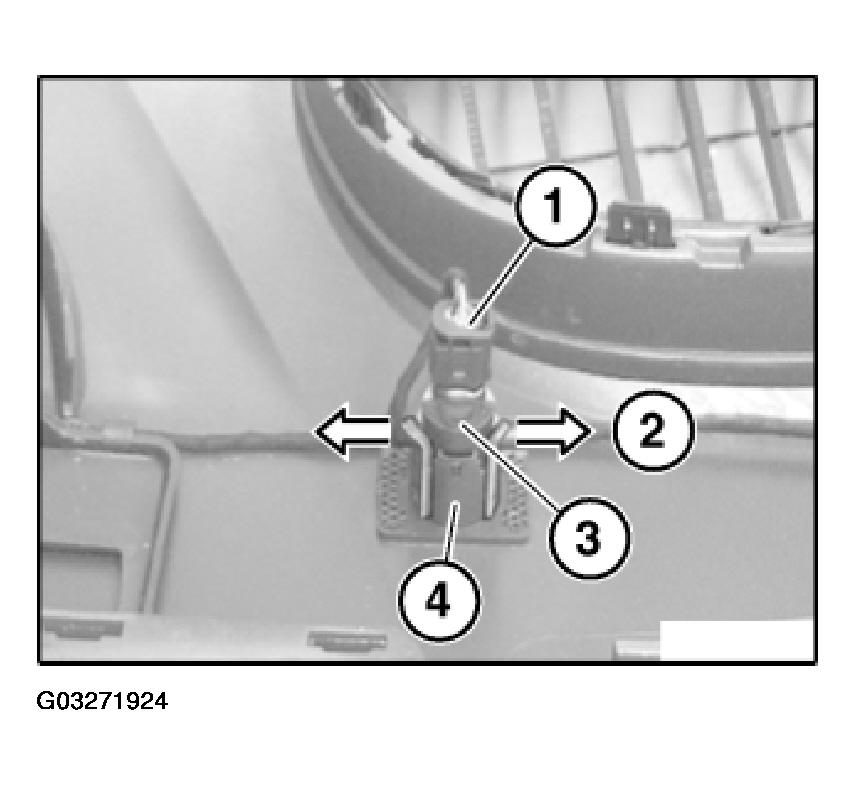

Fig 1: Removing Front Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

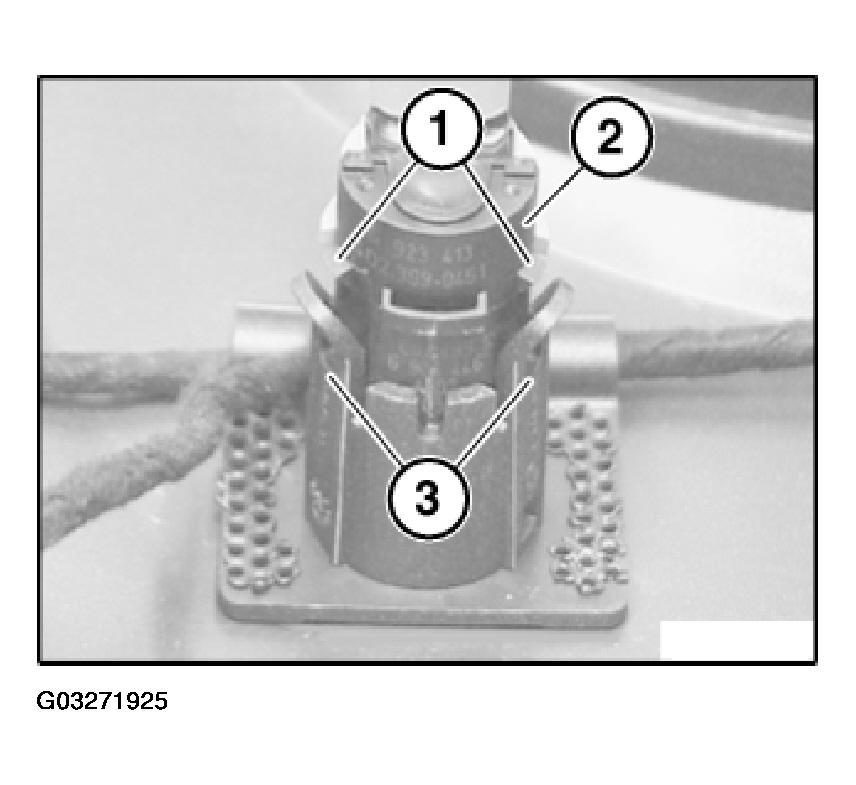

Fig 2: Identifying Front Ultrasonic Transducer Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
