51 13 001 Removing and installing/replacing front radiator grill, middle left or right

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

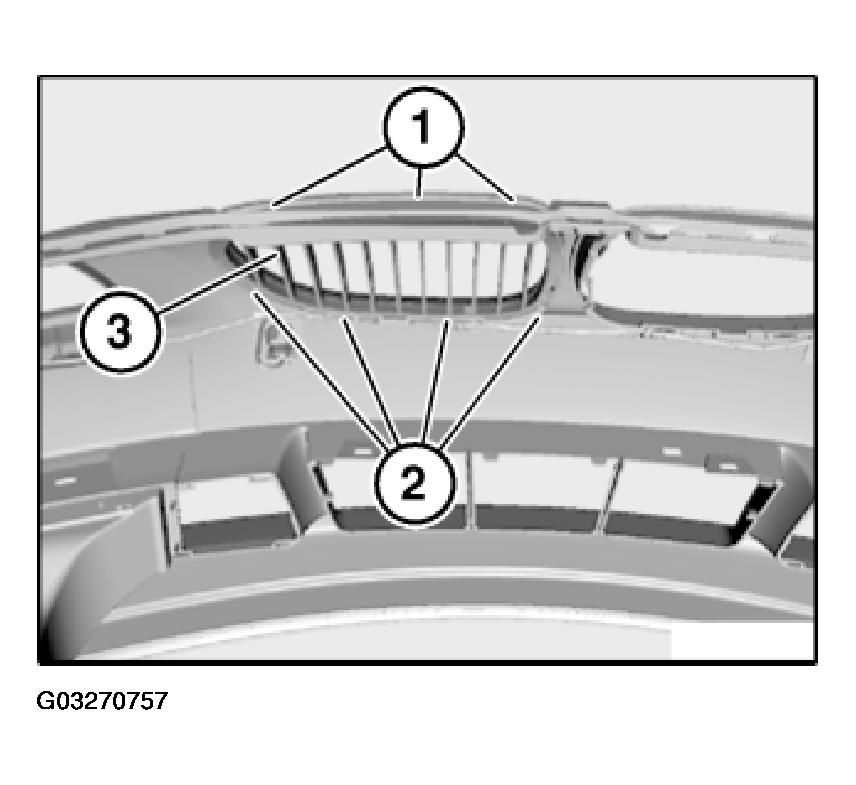

Lever out catches (1) and (2) and remove middle front grill (3) towards front.

Fig 1: View Of Middle Front Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

All catches and guides on middle front grill must not be damaged.

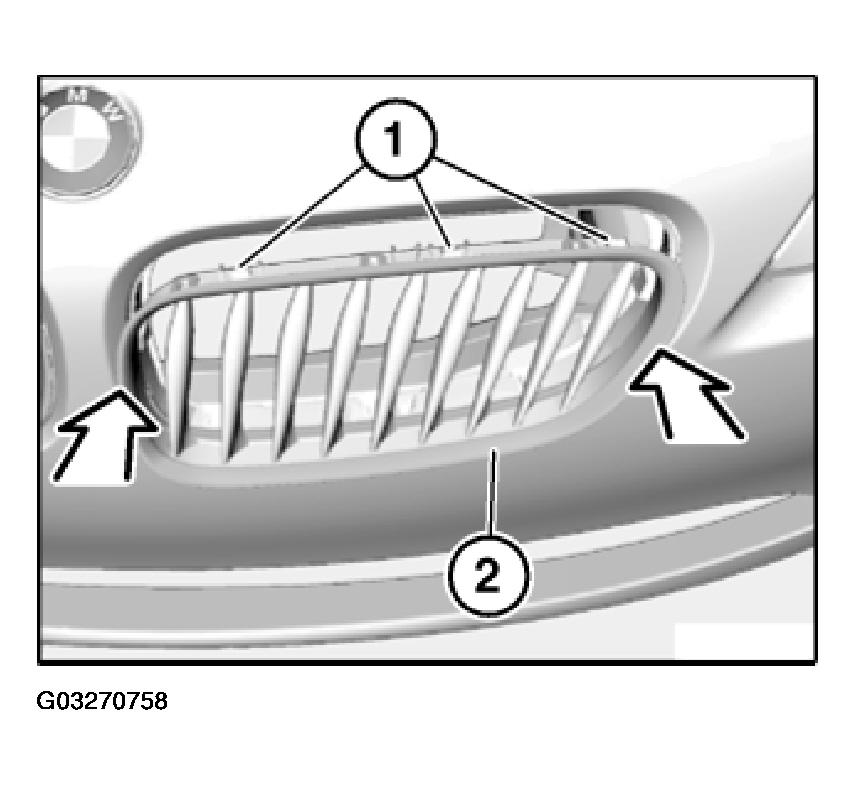

Press on chrome ring to push front radiator grill (2) into bumper trim.

Fixtures (1) must engage correctly.

Fig 2: Installing Radiator Grill Into Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following work step ends here: "Removing and installing middle left or right front radiator grill." Replacement:

Replace front radiator grill, middle left or right. Refer to 51 13 ... REPLACING FRONT RADIATOR GRILL, MIDDLE LEFT OR RIGHT .
