51 11 ... Removing and installing/replacing cover for headlight cleaning system on left

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Version without headlight cleaning system:

With bumper trim fitted, remove cover (1) with special tool 00 9 341.
With bumper trim removed, unclip cover (1) from inside.

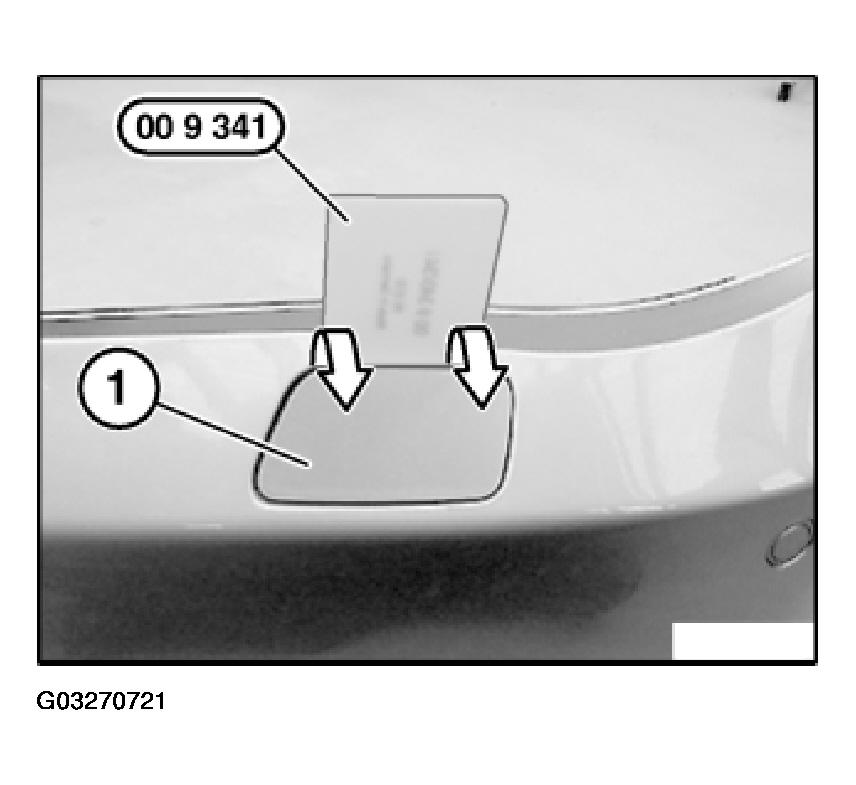

Fig 1: Removing Cover With Special Tool
Courtesy of BMW OF NORTH AMERICA, INC.

Release catch.

Remove cover (1) from carrier (2).

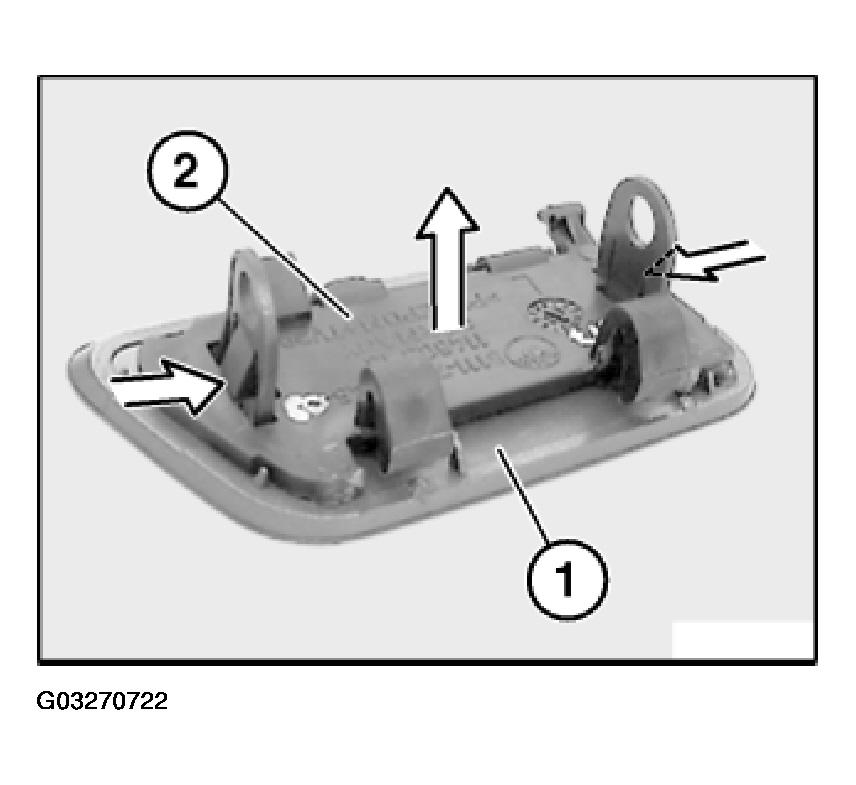

Fig 2: Removing Cover From Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Version with headlight cleaning system:

Remove cover (1) from carrier (2).

If necessary, release spring (1).

If necessary, remove carrier/lever (2).

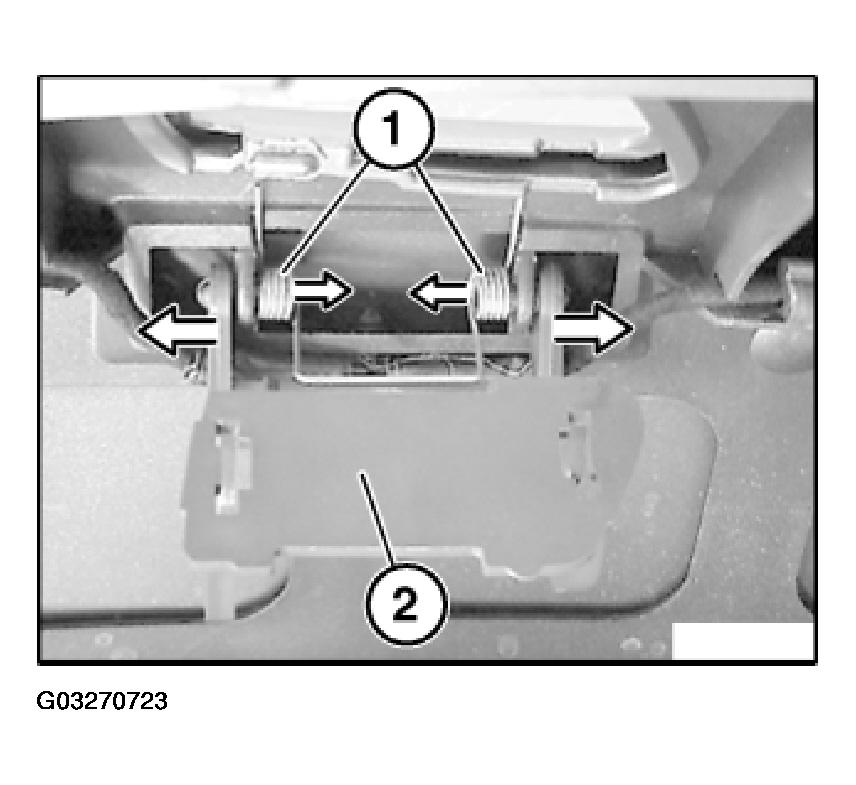

Fig 3: Removing Carrier/Lever

Courtesy of BMW OF NORTH AMERICA, INC.
