63 17 060 Removing and installing (replacing) left or right front fog lamp

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Detach cover (2) from front underride protection (3) and feed out in direction of arrow.

Remove cover (2).

Fig 1: Locating Protection Cover Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release screws (2).

Feed front fog lamp (3) in direction of arrow out of mounting (4) and remove.

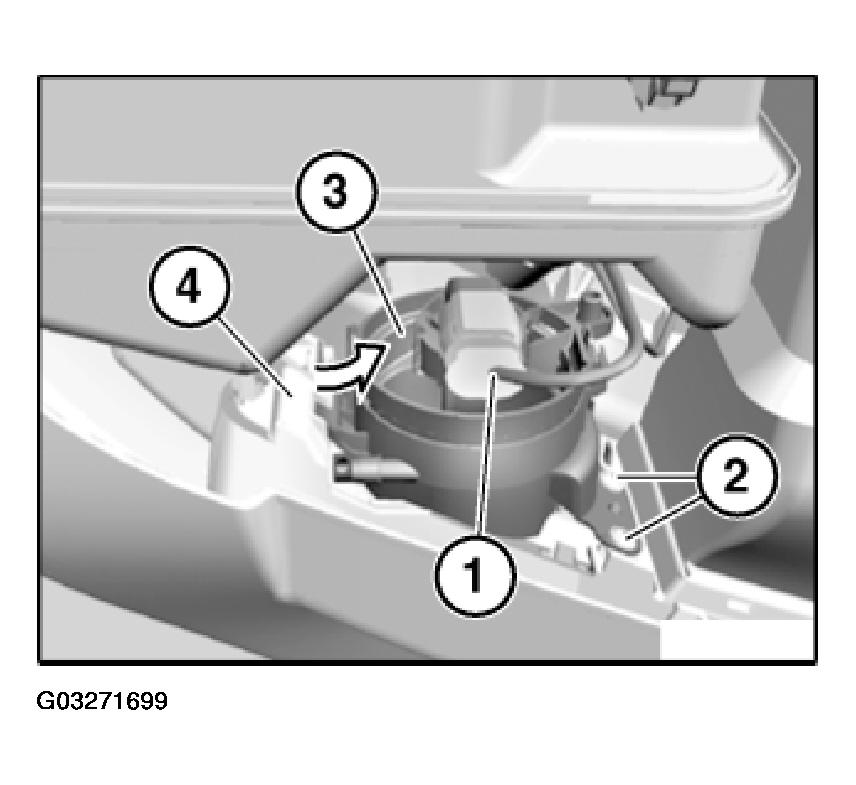

Fig 2: Identifying Fog Lamp Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulb.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99 ... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Installation:

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA- 545I (4.4L) E60/N62 .

Replacement:

Adjust front fog lamps. Refer to 63 10 014 ADJUSTING FOG LAMPS .
