51 11 156 Removing and installing front bumper trim

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Not M5:

Remove middle grille. Refer to 51 11 180 REMOVING AND INSTALLING/REPLACING GRILLE IN BUMPER TRIM (M5 OR M AERODYNAMIC KIT) .
Remove air duct trim. Refer to 51 11 160 REMOVING AND INSTALLING/REPLACING TRIM FOR AIR DUCT ON BUMPER TRIM .

Release screws (1) on wheel arch trim (2) on left/right.

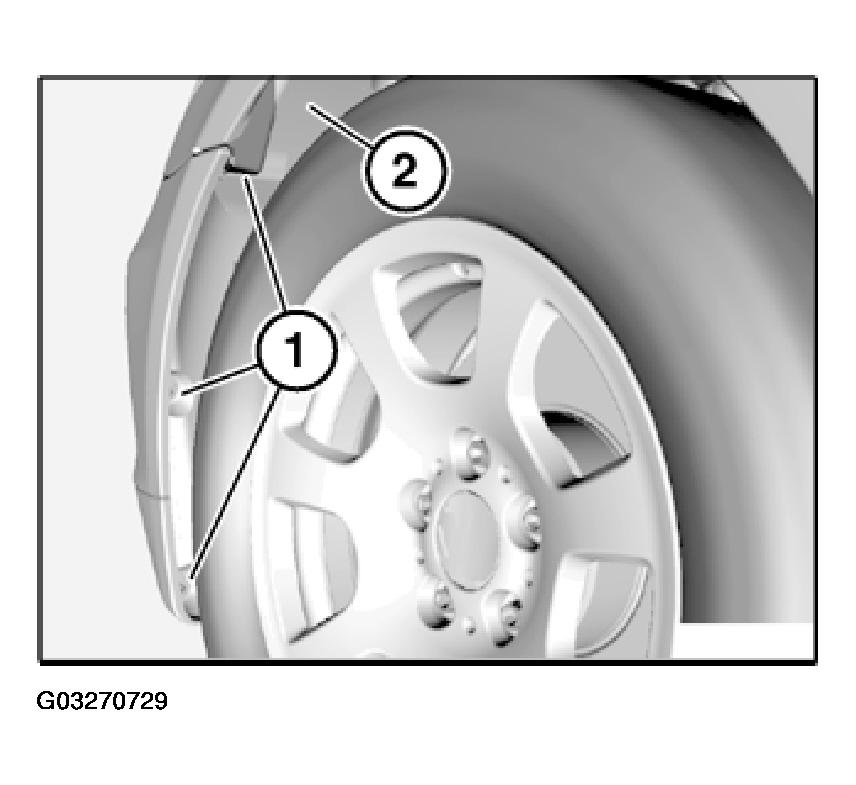

Fig 1: Locating Screws On Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Not M5:

Release screws (1).

Installation:

Make sure trims (2) are in correct position.

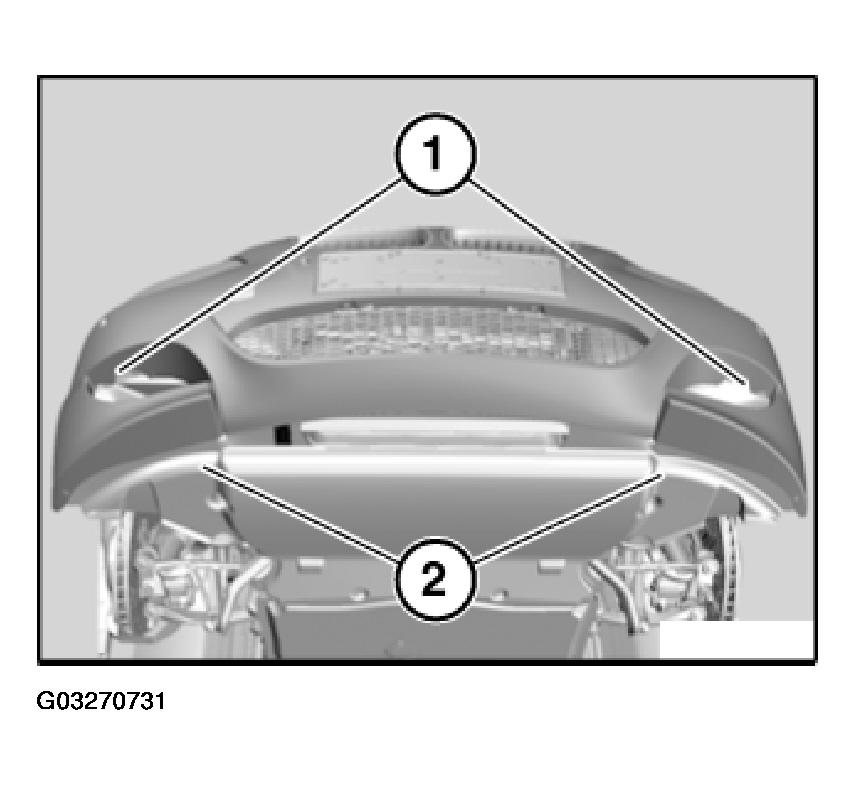

Fig 2: Identifying Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

M5 Only:

Unscrew screws (1).

Installation:

Make sure trim (2) is in correct position.

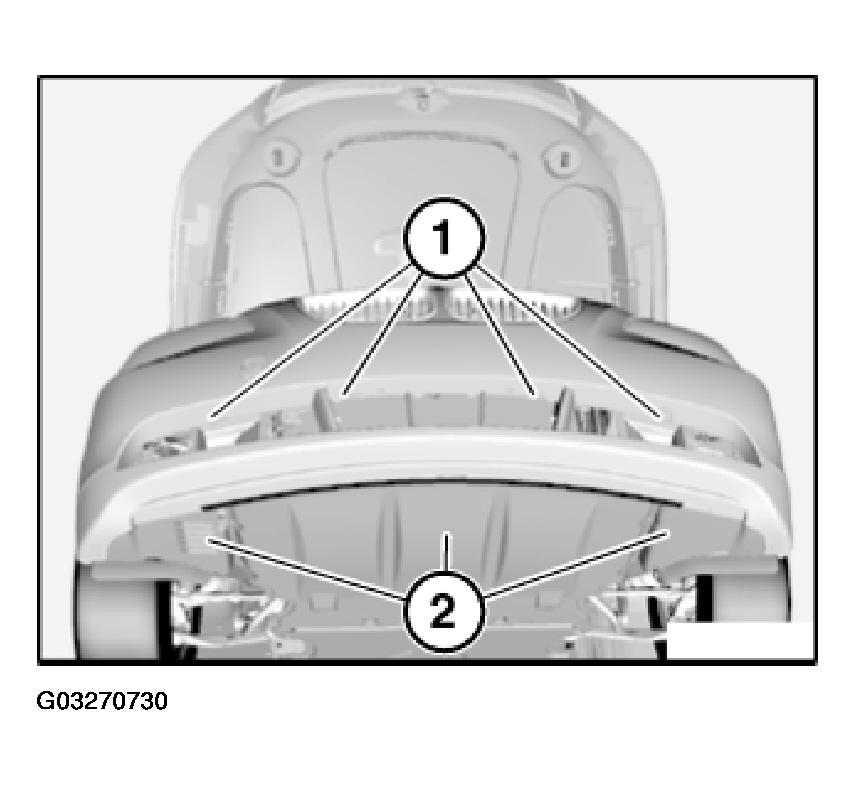

Fig 3: View Of Front Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip strip (1) in direction of arrow and release screws (2) underneath.

Fig 4: Identifying Bumper Strip

Courtesy of BMW OF NORTH AMERICA, INC.

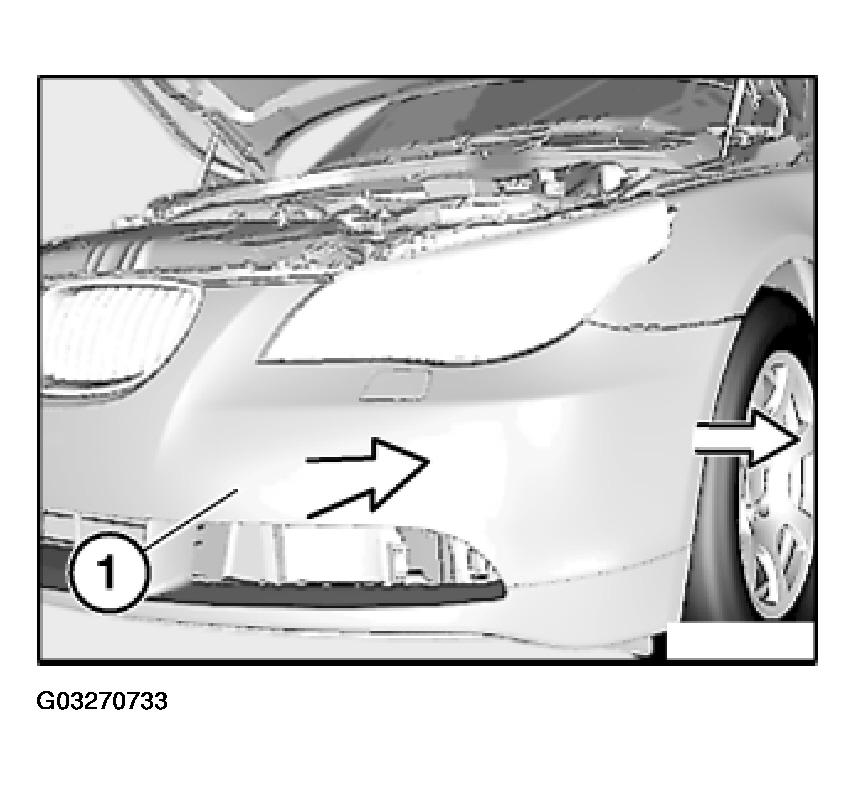

Press bumper trim (1) against direction of travel and release from holders in direction of arrow.

If necessary, disconnect plug connections on left/right fog lamps.

If necessary, disconnect right Park Distance Control plug connection.

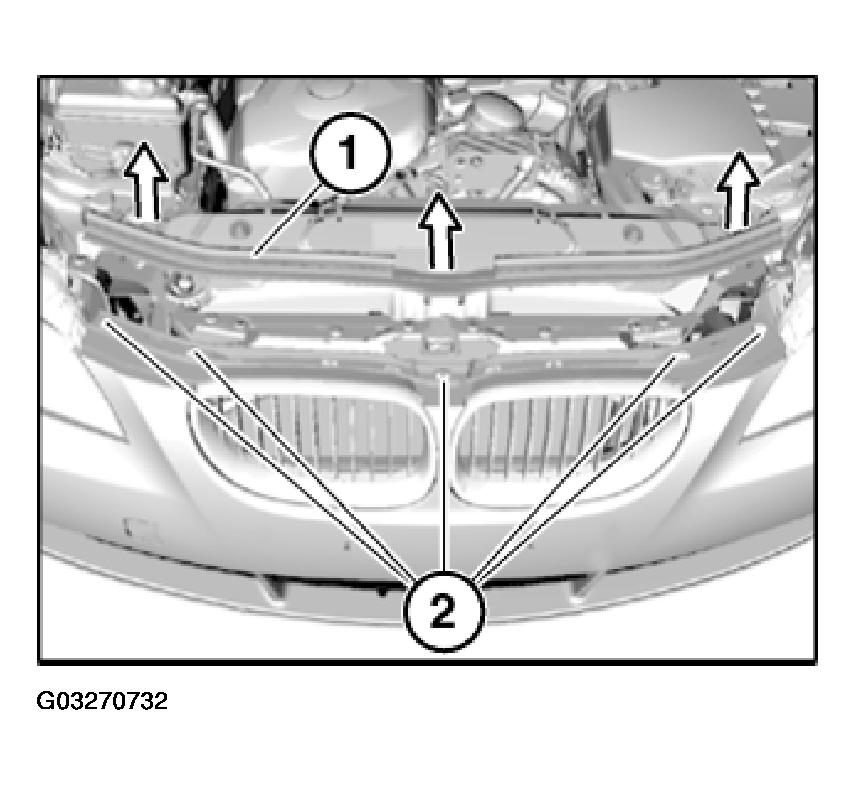

Remove bumper trim (1) straight forwards with a 2nd person helping.

Fig 5: Removing Bumper Trim

Courtesy of BMW OF NORTH AMERICA, INC.
