Seat Belt Attaching Points Overview, Split Second Row Bench Seat, Two-Third Bench And One-Third Seat
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

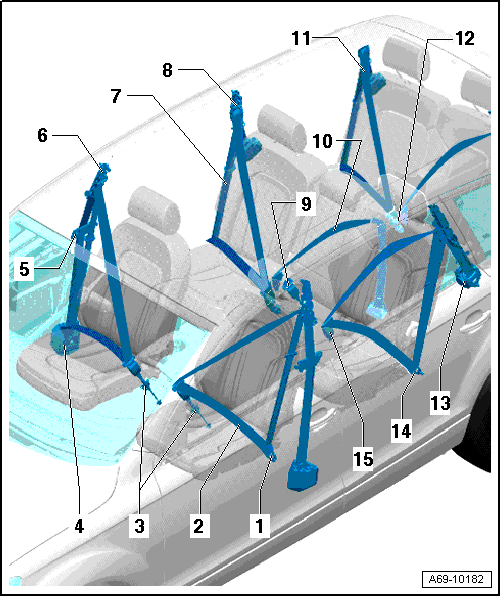

Fig 1: Seat Belt Attaching Points, Split 2nd Row Bench Seat, Two-Third Bench And One-Third Seat Assembly Overview
- Outer Belt End Fitting
- Belt anchor at front seat.
- Removing and Installing. Refer to BELT ANCHOR, REMOVING AND INSTALLING .
- Front Three-Point Seat Belt
- Assembly Overview. Refer to FRONT THREE-POINT SEAT BELT OVERVIEW .
- Front Seat Belt Latch Securing Point
- On front seat.
- Removing and Installing. Refer to BELT LATCH ANCHORAGE POINT, REMOVING AND INSTALLING .
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on.
- Belt Roller/Belt Tensioner
- For front three-point seat belt.
- Assembly Overview. Refer to FRONT THREE-POINT SEAT BELT OVERVIEW .
- Front Seat Belt Guide
- Removing and Installing. Refer to FRONT BELT GUIDE, REMOVING AND INSTALLING .
- Front Seat Belt Height Adjuster
- Assembly Overview. Refer to FRONT SEAT BELT HEIGHT ADJUSTER OVERVIEW .
- Seat belt height adjuster must always be replaced if the belt tensioner has deployed with the belt on.
- Outer 2nd Row Three-Point Seat Belt
- Without pyrotechnic belt tensioner.
- With pyrotechnic belt tensioner.
- Assembly Overview. Refer to OUTER THREE-POINT SEAT BELT (2ND ROW) OVERVIEW .
- Rear Seat Belt Height Adjuster (2nd Row)
- Removing and Installing. Refer to REAR BELT HEIGHT ADJUSTER (2ND ROW), REMOVING AND INSTALLING .
- Seat belt height adjuster must always be replaced if the belt tensioner has deployed with the belt on.
- 2nd Row Rear Seat Belt Securing Point
- Is installed at left seat frame in 2nd row.
- Removing and Installing. Refer to CENTER SEAT BELT LATCH SECURING POINT (2ND ROW), REMOVING AND INSTALLING .
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on.
- Center 2nd Row Three-Point Seat Belt
- Is installed in the 2nd row left seat backrest.
- Assembly Overview. Refer to CENTER THE THREE-POINT SEAT BELT (2ND ROW) OVERVIEW .
- 3rd Row Seat Belt
- Assembly Overview. Refer to SEAT BELT (3RD ROW) OVERVIEW .
- 3rd Row Rear Seat Belt Securing Point
- Removing and Installing. Refer to CENTER SEAT BELT LATCH SECURING POINT (3RD ROW), REMOVING AND INSTALLING .
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on.
- Belt Roller/Belt Tensioner
- For outer 2nd row three-point seat belt.
- Assembly Overview. Refer to OUTER THREE-POINT SEAT BELT (2ND ROW) OVERVIEW .
- 2nd Row Outer Belt Anchor
- Assembly Overview. Refer to OUTER THREE-POINT SEAT BELT (2ND ROW) OVERVIEW .
- 2nd Row Outer Seat Belt Latch Securing Point
- Removing and Installing. Refer to OUTER SEAT BELT LATCH SECURING POINT (2ND ROW), REMOVING AND INSTALLING .
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on.
