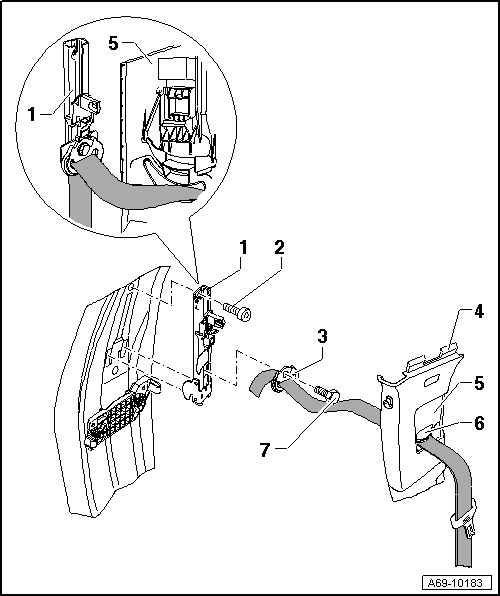

Front Seat Belt Height Adjuster Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Belt Height Adjuster
- Removing and Installing. Refer to FRONT SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Seat belt height adjuster must always be replaced if the belt tensioner has deployed with the belt on
- Bolt
- 21 Nm
- If the seat belt height adjuster is being removed for accident repairs, replace the screw.
- Seat Belt Relay
- B-Pillar Trim
- Slide
- Button
- Bolt
- 55 Nm
- If the belt relay and seat belt height adjuster are removed for accident repairs, replace the screw.
