Seat Belt (3RD Row) Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

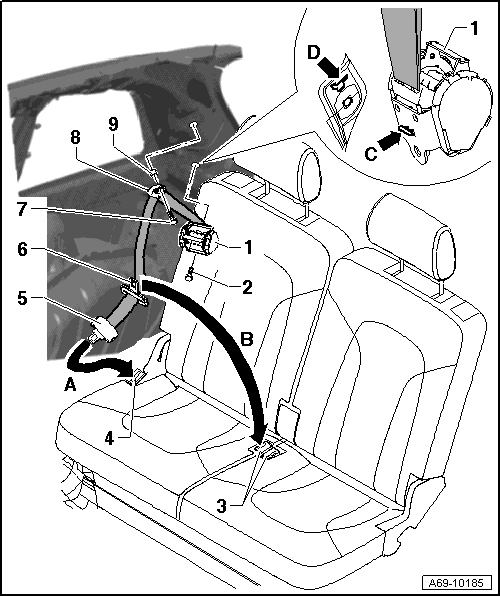

- Belt Roller
- Engage hooks -arrow C- in body cut-out -arrow D-.
- Removing and Installing. Refer to SEAT BELT (3RD ROW), REMOVING AND INSTALLING .
- Bolt
- 55 Nm
- If seat belt is being removed for accident repairs, replace screw.
- 3rd Row Center Seat Belt Latch
- Double latch
- Removing and Installing. Refer to CENTER SEAT BELT LATCH SECURING POINT (3RD ROW), REMOVING AND INSTALLING .
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on.
- 3rd Row Outer Seat Belt Latch
- Removing and Installing. Refer to OUTER SEAT BELT LATCH SECURING POINT (3RD ROW), REMOVING AND INSTALLING .
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on.
- Locking Tongue
- Is inserted in 3rd row outer seat belt latch -arrow A-.
- Locking Tongue
- Is inserted in 3rd row center seat belt latch -arrow B-.
- Bolt
- 55 Nm
- If belt relay is being removed for accident repairs, replace screw.
- Belt relay must swing by itself in carrier direction after tightening screw.
- Seat Belt Relay
- Belt relay must swing by itself in carrier direction after tightening screw.
- Spacer Ring
- Is installed between belt relay and body.
