Outer Seat Belt Latch Securing Point (2ND Row), Removing And Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Left 2nd Row Seat Belt Latch, Removing and Installing

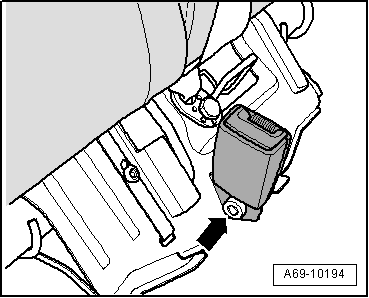

Fig 1: Left 2nd Row Seat Belt Latch

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

-- Remove the 2nd row seat padding of the seat bench. Refer to BENCH SEAT CUSHION, REMOVING AND INSTALLING .

-- Remove the screw -1- and remove the seat belt latch.

Install in reverse order of removal. Observe the following when doing so:

Screw -arrow- tightening specification: 55 Nm

Right 2nd Row Seat Belt Latch, Removing and Installing

Fig 2: Right 2nd Row Seat Belt Latch

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

-- Remove right 2nd row seat.

Standard version. Refer to SECOND ROW, 3 PASSENGER OVERVIEW .
Comfort version. Refer to SECOND ROW, 2 PASSENGER OVERVIEW .

-- Unclip cover cap -1- from seat frame.

-- Remove the screw -arrow- and remove the seat belt latch -2-.

Install in reverse order of removal. Observe the following when doing so:

Screw -arrow- tightening specification: 55 Nm
