Outer Three-Point Seat Belt (2ND Row) Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .

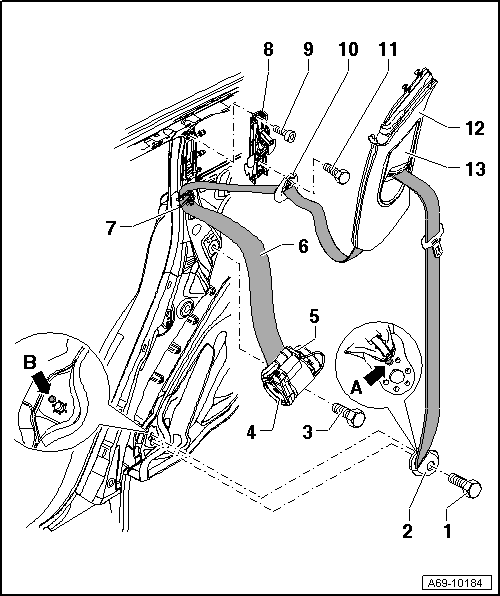

- Bolt
- 55 Nm
- If three-point seat belt is being removed for accident repairs, replace screw.
- Belt End Fitting
- The anchor depression -arrow A- must rest on the anti-twist mechanism -arrow B-.
- Bolt
- 55 Nm
- In delivery casing.
- If 2nd row outer three-point seat belt is being removed for accident repairs, replace screw.
- Belt Roller/Belt Tensioner
- Removing and Installing. Refer to OUTER THREE-POINT SEAT BELT (2ND ROW), REMOVING AND INSTALLING .NOTE:
Belt tensioner is not present on all vehicles.
- Removing and Installing. Refer to OUTER THREE-POINT SEAT BELT (2ND ROW), REMOVING AND INSTALLING .
- Belt Tensioner Connector
- Removing and installing. Refer to OUTER THREE-POINT SEAT BELT (2ND ROW), REMOVING AND INSTALLING .
- Seat Belt Webbing
- Seat Belt Guide
- Removing and Installing. Refer to REAR BELT GUIDE (2ND ROW), REMOVING AND INSTALLING .
- Seat Belt Height Adjuster
- Removing and Installing. Refer to REAR BELT HEIGHT ADJUSTER (2ND ROW), REMOVING AND INSTALLING .
- Function test. Refer to FRONT SEAT BELT HEIGHT ADJUSTER, REMOVING AND INSTALLING .
- Seat belt height adjuster must always be replaced if the belt tensioner has deployed with the belt on.
- Bolt
- 21 Nm
- If the seat belt height adjuster is being removed for accident repairs, replace the screw.
- Seat Belt Relay
- Belt relay must swing by itself in carrier direction after tightening screw.
- Bolt
- 55 Nm
- If belt relay is being removed for accident repairs, replace screw.
- Belt relay must swing by itself in carrier direction after tightening screw.
- C-Pillar Trim
- Belt Height Adjustment Slide
