Timing Mechanism Drive Chain, Removing And Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Proceed as follows:

-- Removal engine, refer to ENGINE, REMOVAL .

-- Separate the engine and transmission. For vehicles with a manual transmission, refer to ENGINE AND MANUAL TRANSMISSION, SEPARATING . For vehicles with an automatic transmission, refer to ENGINE AND AUTOMATIC TRANSMISSION, SEPARATING .

-- Secure the engine on the engine and transmission holder, refer to ENGINE, SECURING ON ENGINE AND TRANSMISSION HOLDER .

-- Remove the cylinder head cover, refer to CYLINDER HEAD COVER, REMOVING AND INSTALLING .

-- On vehicle with manual transmission, remove dual mass flywheel, refer to DUAL MASS FLYWHEEL, REMOVING AND INSTALLING .

-- On a vehicle with automatic transmission, remove drive plate, refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Remove the oil pan, refer to OIL PAN, REMOVING AND INSTALLING .

-- Remove the timing chain cover lower section, refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Mark running direction of timing mechanism drive chain with arrows using paint -lower arrow- for reinstallation.

Fig 1: Identifying Markings On Roller Chains

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging timing mechanism drive chain.

Do not mark timing mechanism with a chain punch, notch or something similar.

-- Adjust crankshaft at vibration damper screw in direction of engine rotation to "TDC" marking.

Fig 2: Identifying Crankshaft At Vibration Damper Securing Bolt In Engine At TDC Cyl. 1

Courtesy of AUDI OF AMERICA, LLC

The markings on the vibration damper and sealing flange must align -arrow-.

Camshaft BarT10068 A must engage in grooves on both camshafts at the same time.

Fig 3: Identifying Camshaft Bar T10068 A Engage In Shaft Grooves
Courtesy of AUDI OF AMERICA, LLC

NOTE:

Due to the camshaft adjuster function, the camshaft grooves may not be perfectly horizontal. If necessary, turn the camshaft back and forth -arrows- slightly with an open end wrench in order to insert the Camshaft BarT10068A.

Fig 4: Counter-Holding At Camshaft Using Wrench

Courtesy of AUDI OF AMERICA, LLC

If the Camshaft BarT10068 A does not engage, rotate the crankshaft 1 rotation further in direction of engine rotation.

-- Remove camshaft timing chain tensioner -arrow-.

Fig 5: Chain Tensioner Bolt Camshaft Roller Chain

Courtesy of AUDI OF AMERICA, LLC

-- Counter hold with Counterhold - Vibration DamperT10069 at vibration damper bolt.

Fig 6: Counter-Holder T10069 To Hold Vibration Damper

Courtesy of AUDI OF AMERICA, LLC

-- Loosen chain sprocket bolt -arrow- approximately 1 turn.

Fig 7: Identifying Sprocket Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove timing mechanism drive chain tensioner -arrows-.

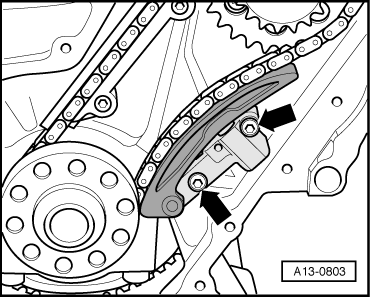

Fig 8: Chain Tensioner Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove chain sprocket bolt -arrow-.

Fig 9: Identifying Sprocket Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove camshaft timing chain sprocket with timing chain from timing mechanism drive chain sprocket -arrow- and pivot to side.

Fig 10: Inserting Small Chain Sprocket With Installed Chain Into Recess

Courtesy of AUDI OF AMERICA, LLC

-- Remove timing mechanism drive chain sprocket with drive chain.

Fig 11: Identifying Large Sprocket Installed Into Timing Chain With Tab Aligned To Mark On Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -Items A and B-.

Installation

Fig 12: Identifying Markings On Roller Chains

Courtesy of AUDI OF AMERICA, LLC

Tightening specifications, refer to CAMSHAFT TIMING CHAINS OVERVIEW .

NOTE:

Replace the bolts which are being tightened with an additional turn.

-- When reInstallation a used timing mechanism drive chain, note running direction marking -lower arrow-.

-- Install timing mechanism drive chain together with chain sprocket on oil pump.

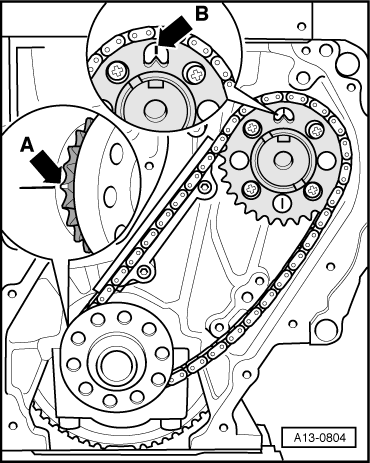

Fig 13: Identifying Large Sprocket Installed Into Timing Chain With Tab Aligned To Mark On Cylinder Block

Courtesy of AUDI OF AMERICA, LLC

Installation only possible in one position.

-- If large chain sprocket cannot be installed, rotate oil pump shaft slightly.

-- Check if crankshaft is in "TDC" position:

Milled drive chain sprocket tooth must align with bearing joint -arrow A-.
Tab on chain sprocket must align with tab -arrow B- on oil pump housing.

-- Install camshaft timing chain sprocket with timing chain in place.

Fig 14: Inserting Small Chain Sprocket With Installed Chain Into Recess

Courtesy of AUDI OF AMERICA, LLC

Pins on back side of chain sprocket must engage in cut outs -arrow-.

-- Tighten chain sprocket bolt -arrow- by hand.

Fig 15: Identifying Sprocket Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Release locking splines in chain tensioner with a small screwdriver -arrow- and press tensioning rail against chain tensioner.

Fig 16: Identifying Small Screwdriver To Release Locking Splines Of Chain Tensioner

Courtesy of AUDI OF AMERICA, LLC

-- Tighten chain tensioner while pressed down -arrows-.

Fig 17: Chain Tensioner Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Counter hold with Counterhold - Vibration DamperT10069 at vibration damper bolt.

Fig 18: Counter-Holder T10069 To Hold Vibration Damper

Courtesy of AUDI OF AMERICA, LLC

-- Tighten chain sprocket bolt -arrow-.

Fig 19: Identifying Sprocket Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Install camshaft timing chain tensioner -arrow-.

Fig 20: Chain Tensioner Bolt Camshaft Roller Chain

Courtesy of AUDI OF AMERICA, LLC

-- Remove Camshaft BarT10068A.

Fig 21: Identifying Camshaft Bar T10068 A Engage In Shaft Grooves

Courtesy of AUDI OF AMERICA, LLC

-- Rotate crankshaft 2 revolutions in direction of engine rotation at vibration damper bolt and place at "TDC" marking.

Fig 22: Identifying Crankshaft At Vibration Damper Securing Bolt In Engine At TDC Cyl. 1

Courtesy of AUDI OF AMERICA, LLC

The markings on the vibration damper and sealing flange must align -arrow-.

Camshaft BarT10068 A must engage in grooves on both camshafts at the same time.

Fig 23: Identifying Camshaft Bar T10068 A Engage In Shaft Grooves
Courtesy of AUDI OF AMERICA, LLC

NOTE:

Fig 24: Counter-Holding At Camshaft Using Wrench

Courtesy of AUDI OF AMERICA, LLC

If the camshaft bar cannot be engaged, adjust timing again.

Rotate crankshaft 2 revolutions in direction of engine rotation at vibration damper bolt and place at "TDC" marking.

Check timing again.

-- Install the timing chain cover lower section, refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Install the oil pan, refer to OIL PAN, REMOVING AND INSTALLING .

-- On vehicle with manual transmission, install dual mass flywheel, refer to DUAL MASS FLYWHEEL, REMOVING AND INSTALLING .

-- On a vehicle with automatic transmission, install drive plate, refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Install the cylinder head cover, refer to CYLINDER HEAD COVER, REMOVING AND INSTALLING .

-- Install the engine, refer to ENGINE, INSTALLATION .

-- Fill engine oil and check the oil level, refer to OIL LEVEL, CHECKING .
