Dual Mass Flywheel, Removing And Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Flywheel Retainer3067

Removal

Proceed as follows:

The transmission is removed.

-- Mark dual mass flywheel position to crankshaft for reinstallation.

Fig 1: Identifying Dual-Mass Flywheel & Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying dual mass flywheel.

Remove bolts -B- by hand, not with and air-powered or impact wrench.
When Removal bolts, ensure bolt head does not come in contact with dual mass flywheel.
Rotate dual mass flywheel -A- so bolts -B- are centered to holes -arrows-.

-- Insert Flywheel Retainer3067 to loosen dual mass flywheel bolts.

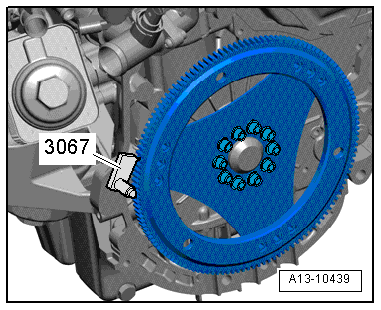

Fig 2: Identifying Counter Hold 3067 To Loosen Drive Plate Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Loosen and remove the dual mass flywheel bolts in a diagonal sequence.

Installation

Tightening specification, refer to DUAL MASS FLYWHEEL, OVERVIEW .

Install in reverse order of removal. Note the following:

NOTE:

Replace the bolts which are being tightened with an additional turn.

-- Use Flywheel Retainer3067 to tighten dual mass flywheel bolts.
