Engine And Automatic Transmission, Separating

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Bracket - Multiple Use 30-211A
Scissor Lift Table - Audi Set VAS6131/10 and Scissor Lift Table - A6 Set VAS6131/12 and Scissor Lift Table - Q7 Set VAS6131/13
M10 x 65 bolt

Procedure

Proceed as follows:

The engine/transmission assembly is removed and placed on the Scissor Lift Table VAS6131.

NOTE:

When Installation, place all cable ties and protective boots in same locations.

-- Equip Scissor Lift Table VAS6131 with Scissor Lift Table - Audi Set VAS6131/10 and additional parts from Scissor Lift Table - A6 Set VAS6131/12 and Scissor Lift Table - Q7 Set VAS6131/13 as follows:

Fig 1: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The other attachments remain unchanged.

Platform Coordinates	Parts from Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A6 Set VAS6131/12 and Scissor Lift Table - Q7 Set VAS6131/13
F1	/13-7
C10	/10-1	/12-2	/10-5	/13-2
E10	/10-1	/12-2	/10-5	/13-2
G10	/10-1	/12-2	/10-5	/13-3

-- Disengage electrical connector at bracket -arrow-.

Fig 2: Identifying Bolts -1 To 3- And Engine Supports With Engine Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -4-.

NOTE:

Ignore -items 1, 2 and 3-.

-- Secure Joint Support VAS 6131/13-7 at front right on engine support with bolt M10x65.

Fig 3: Identifying Joint Support VAS 6131/13-7 From Engine

Courtesy of AUDI OF AMERICA, LLC

-- Secure Joint Support VAS 6131/13-7 on scissor lift table.

-- Attach mounting elements from Scissor Lift Table - A6 Set VAS6131/12 and Scissor Lift Table - Q7 Set VAS6131/13 at front under transmission ATF oil pan as shown in illustration.

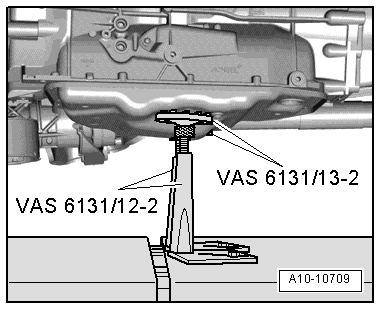

Fig 4: Attaching Mounting Elements From VAS 6131/12 And VAS 6131/13 At Front Under Transmission ATF Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Prepare mounting elements from Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A6 Set VAS6131/12 and Scissor Lift Table - Q7 Set VAS6131/13 for supporting drive shaft as shown in illustration.

Fig 5: Identifying Support Elements VAS6131/12 And VAS6131/13 To Support Driveshaft

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -2- on main catalytic converter brackets.

Fig 6: Identifying Bolts -1, 2, 3- On Main Catalytic Converter Brackets

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -Items 1 and 3-.

Transmission carrier is shown installed in illustration.

-- Remove bolts -arrows- and remove main catalytic converters.

Fig 7: Identifying Bolts -Arrows-, Primary Catalytic Converter Pipes, And Clamping Sleeves

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -2- on main primary converter brackets.

Fig 8: Identifying Primary Catalytic Converter Bracket Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -Item 1-.

-- Free up electrical wires to oxygen sensors.

Fig 9: Identifying Exhaust Pipe With Catalytic Converter To Exhaust Manifold Nuts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -arrows- and remove pre-catalytic converters.

-- Remove bolts -arrows- at front drive shaft to transfer case connection.

Fig 10: Identifying Driveshaft Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

Vehicles with 4-zone climate control:

Fig 11: Identifying Rear Coolant Pipe Bolts -1 To 2- And Bolt -3- For ATF Lines From Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Remove rear coolant pipe bolts -1 and 2-.

NOTE:

Ignore -arrows-.

All Vehicles:

NOTE:

Place a cloth under separation point to catch escaping ATF.

Observe the rules of cleanliness for working on automatic transmissions, refer to REPAIR INFORMATION .

-- Remove bolt -3- and disconnect ATF lines from transmission.

-- Remove the bolt -arrow-.

Fig 12: Identifying Bolt -Arrow- To ATF Line Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Leave ATF lines in installation location.

-- Remove B+ wire bolt -2- on bracket.

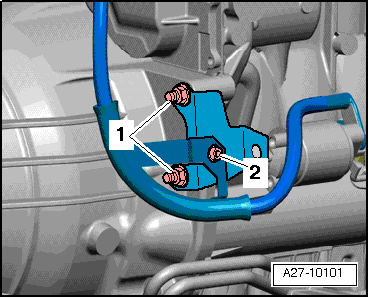

Fig 13: Identifying Bolt -2- And Nuts -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -1- and bracket.

-- Remove heat insulation sleeve from starter.

-- Remove protective caps.

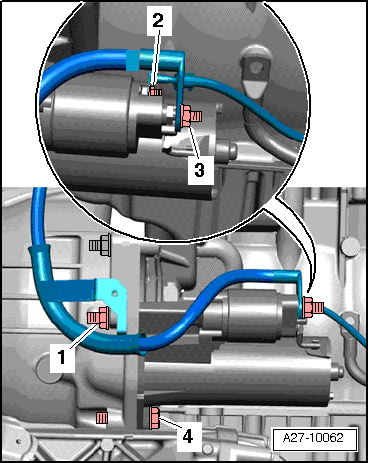

Fig 14: Identifying Bolts -1 & 4- And Wire Brackets -2 & 3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove electrical wires from starter:

2 - Terminal 50

3 - B+ Terminal

-- Disconnect threaded connections -1- and -4- and remove starter.

-- To loosen torque converter bolts, counter hold crankshaft at vibration damper bolt.

Fig 15: View That Torque Converter And Drive Plate Align For Bolts Through Sarter Motor Opening -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove 3 torque converter bolts in opening for removed starter by rotating crankshaft ¹ /₃ further in direction of engine rotation.

-- Disconnect remaining engine to transmission connection bolts.

Fig 16: Identifying Transmission To Engine Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Loosen clamping bolts -1- on sides of Scissor Lift Table VAS6131 and then pull rear table plate with transmission toward rear -arrow- and press torque converter off drive plate through opening for removed starter.

Fig 17: Identifying Separation Of Engine And Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Secure torque converter in transmission against falling out with Bracket - Multiple Use 30-211A.

Fig 18: Identifying Bracket -30-211A- Attached To Secure Torque Converter

Courtesy of AUDI OF AMERICA, LLC
