Engine, Securing On Engine And Transmission Holder
Special tools and workshop equipment required
- Lifting Tackle 3033
- Engine And Transmission Holder VAS6095
- Shop Crane VAS6100
- Engine Support 3269
- Lift Arm Extension VAS6101
Procedure
Proceed as follows:
- The engine/transmission assembly is removed and placed on the Scissor Lift Table VAS6131 separated: Vehicles with manual transmission refer to ENGINE AND MANUAL TRANSMISSION, SEPARATING and vehicles with automatic transmission refer to ENGINE AND AUTOMATIC TRANSMISSION, SEPARATING .

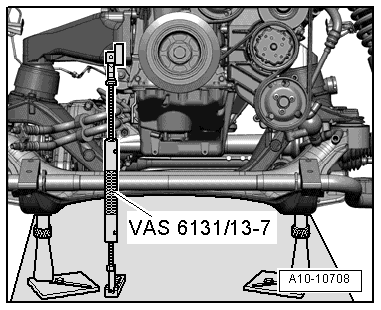

- Engine secured with Joint Support VAS 6131/13-7.
Place a cloth under separating point to catch escaping hydraulic fluid.

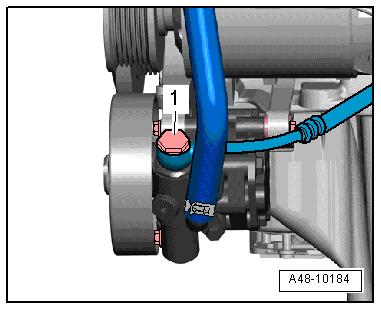

-- Remove power steering pressure line banjo bolt -1-.
-- Remove engine bracket left and right bolts -arrows-.
Engine carrier remains in installation location.
Vehicles with 4-Zone Climate Control:
-- Remove rear coolant pipes from coolant hoses -arrows-.
Ignore -items 1, 2 and 3-.
The illustration shows location with automatic transmission.
All Vehicles:

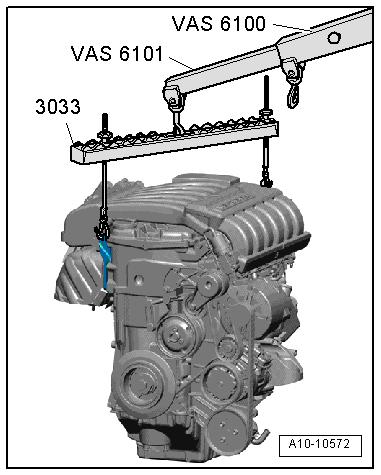

-- Engage Lifting Tackle 3033 in engine lifting eyes and in Shop Crane VAS6100 with Lift Arm Extension VAS6101 as shown in illustration.
-- Tension engine slightly with shop crane, do not raise.
-- Remove Joint Support VAS 6131/13-7 from engine.
-- Raise engine from engine carrier.
Engine, Engaging at Rear
-- Secure the engine on the Engine And Transmission Holder VAS6095 as illustrated.
Engine, Engaging at Sides

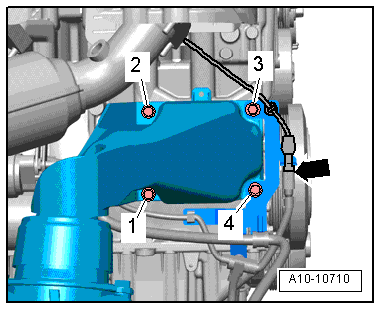

-- If the Engine Support 3269 is to be used, remove bolts -1 to 3- and remove engine supports with engine bracket.
Ignore -Item 4 and arrow-.
-- Secure Engine Support 3269 to cylinder block as shown in illustration.
