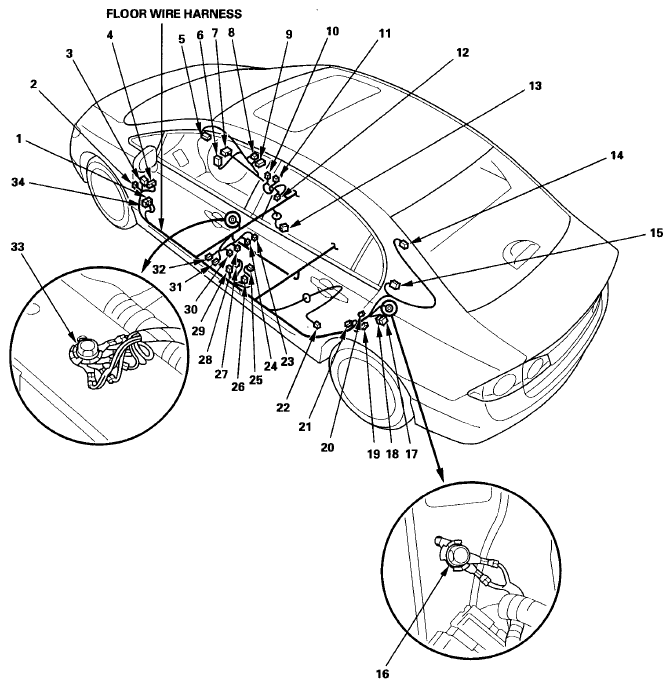

Floor Wire Harness (Left branch)
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR AND TERMINAL CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| A/T gear position indicator console light/park-pin switch |
11 |
4 |
Under center console |
|
A/T |
| Driver's door switch |
27 |
1 |
Left B-pillar |
|
|
| Driver's seat belt buckle switch |
24 |
3 |
Under driver's seat |
|
|
| Driver's seat belt tensioner |
26 |
4 |
Left B-pillar |
|
|
| Driver's seat belt tension reducer solenoid |
30 |
4 |
Under driver's seat |
|
|
| Driver's side airbag inflator |
23 |
2 |
Under driver's seat |
|
|
| Left rear door switch |
19 |
1 |
Left C-pillar |
|
|
| Left rear wheel sensor |
22 |
2 |
Under left side of floor |
|
|
| Left side curtain airbag |
15 |
2 |
Left C-pillar |
|
|
| Left side impact sensor (FIRST) |
29 |
4 |
Left side of floor |
|
|
| Left side impact sensor (SECOND) |
21 |
2 |
Left side of floor |
|
|
| Noise condenser (for rear window defogger) |
20 |
2 |
Left C-pillar |
|
|
| Parking brake switch |
12 |
1 |
Under console panel |
|
|
| Rear window defogger connector A (+) |
14 |
1 |
Left C-pillar |
|
|
| Secondary HO2S (Sensor 2) |
13 |
4 |
Under left side of floor |
|
|
| Shift lock solenoid |
10 |
2 |
Under console panel |
|
A/T |
| SRS unit connector B |
7 |
28 |
Under middle of dash |
|
|
| Stereo amplifier connector A |
32 |
20 |
Left side of floor |
|
|
| Stereo amplifier connector B |
31 |
14 |
Left side of floor |
|
|
| Under-dash fuse/relay box connector E (see
UNDER-DASH FUSE/RELAY BOX
) |
4 |
42 |
Left kick panel |
|
|
| Yaw rate-lateral acceleration sensor |
5 |
5 |
Under middle of dash |
|
|
| C204 |
3 |
14 |
Under left side of dash |
Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
|
| C209 |
2 |
3 |
Under left side of dash |
Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH)
) |
|
| C501 |
1 |
23 |
Under left side of dash |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| C502 |
34 |
20 |
Under left side of dash |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE)
) |
|
| C506 |
6 |
23 |
Left side of floor |
Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF MIDDLE SECTION)
) |
|
| C601 |
8 |
2 |
Under middle of dash |
Console subharness (see CONSOLE SUBHARNESS
) |
|
| C602 |
28 |
2 |
Under driver's seat |
Driver's seat position sensor harness (see DRIVER'S SEAT POSITION SENSOR HARNESS (WITHOUT SEAT HEATER)
) |
|
| C603 |
9 |
12 |
Under middle of dash |
Console subharness (see CONSOLE SUBHARNESS
) |
|
| C604 |
28 |
8 |
Under driver's seat |
Driver's seat wire harness (see DRIVER'S SEAT WIRE HARNESS (WITH SEAT HEATER)
) |
|
| C701 |
17 |
14 |
Left side of floor |
Rear wire harness (see REAR WIRE HARNESS (LEFT BRANCH)
) |
|
| C702 |
18 |
6 |
Left C-pillar |
Rear wire harness (see REAR WIRE HARNESS (LEFT BRANCH)
) |
|
| C771 |
25 |
18 |
Left B-pillar |
Left rear door wire harness (see LEFT REAR DOOR WIRE HARNESS
) |
|
| G601 |
33 |
|
Under driver's seat |
Body ground, via floor wire harness |
|
| G603 |
16 |
|
Left side of floor |
Body ground, via floor wire harness |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
