Left Rear Door Wire Harness
WARNING: This page is about a different car, the 2007 Acura CSX and 2006 Acura CSX. However, it is still accessible from the selected car via links, so may be relevant.

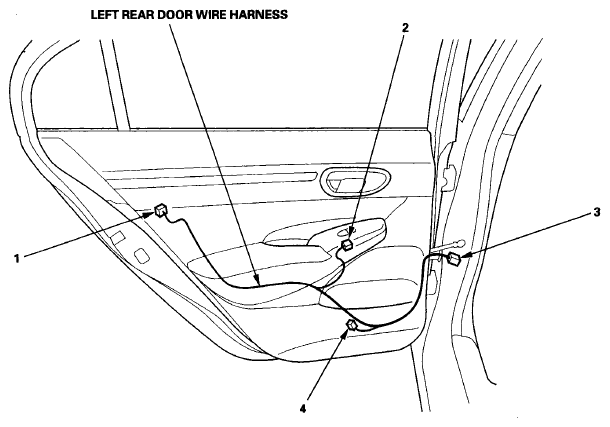

CONNECTOR AND TERMINAL CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Left rear door lock actuator | 1 | 10 | Left rear door | ||
| Left rear power window motor | 4 | 2 | Left rear door | ||
| Left rear power window switch | 2 | 8 | Left rear door | ||
| C771 | 3 | 18 | Left B-pillar | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
